Mfr Part #:

SMI6B-5-V-P7

Mfr Name: CUI Inc.

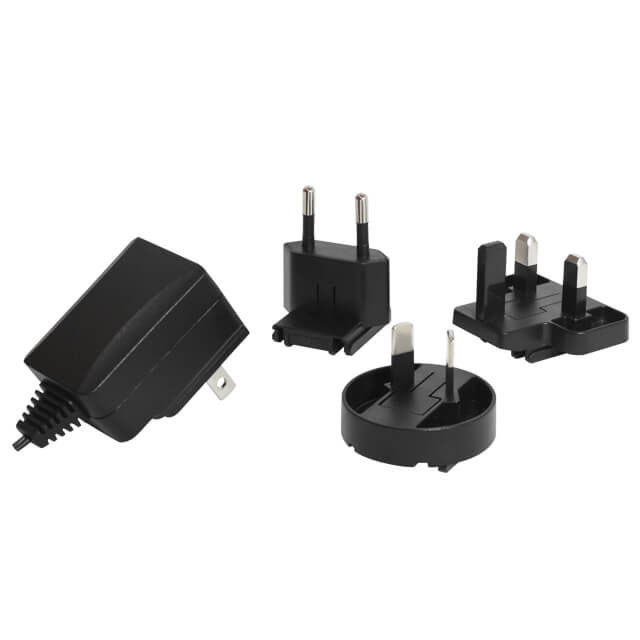

The CUI Inc. SMI6B-5-V-P7 is a 6W AC-DC external wall mount adapter with a 5V regulated output. It features universal input (90-264 Vac) and meets DoE Level VI and CoC Tier 2 efficiency standards.

Stock on Request

SMI6B-5-V-P7 Description

Short technical summary and product information.

The CUI Inc. SMI6B-5-V-P7 is an AC-DC external wall mount power supply designed for commercial ITE applications. It provides a single regulated 5Vdc output with a maximum current of 1.2A, delivering up to 6W of power.

This adapter features a universal input voltage range of 90-264 Vac and operates across a frequency range of 47-63 Hz. It meets DoE Level VI and CoC Tier 2 efficiency standards, with a typical efficiency of 80.5% and a low no-load power consumption of 0.06W.

Designed for versatility, the SMI6B-5-V-P7 includes interchangeable AC blades and a multi-blade input connector. It offers over-voltage and short-circuit protections for enhanced reliability. Safety approvals include UL/cUL, GS, RCM, CCC, PSE, and it is certified to UL/EN/IEC 62368-1 standards.

The compact dimensions are 47.0mm x 34.5mm x 26.4mm, making it suitable for space-constrained designs. The output connector is a standard barrel plug (1.35mm I.D. x 3.5mm O.D. x 9.5mm).

SMI6B-5-V-P7 Quick Information

Product Type: AC DC Desktop, Wall Adapters

Series: SMI6B

Canonical Name: CUI Inc. SMI6B Series AC-DC Power Supply, 5V, 1.2A, 6W

Subcategory: External Wall Mount Adapter

SMI6B-5-V-P7 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SMI6B-5-V-P7 Features

Provides 6W of power with a 5Vdc output.
Universal 90-264 Vac input voltage range.
Meets DoE Level VI and CoC Tier 2 efficiency.
Includes over-voltage and short-circuit protections.
Compact wall mount design with interchangeable blades.

SMI6B-5-V-P7 Applications

Suitable for commercial ITE equipment.
Ideal for portable electronic devices.
Used in networking and communication systems.
Applicable in industrial control systems.

SMI6B-5-V-P7 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range?

90 to 264 Vac at 47 to 63 Hz.

What is the output voltage and current?

5 Vdc at up to 1.2 A.

What is the operating temperature range?

0°C to 40°C.

What type of output connector does it have?

Barrel plug with 1.35 mm I.D. x 3.5 mm O.D., positive center polarity.

What protection features are included?

Over-current protection at 1.8 A minimum and short circuit protection with auto recovery.

What is the isolation voltage?

3,000 Vac between input and output.

What is the efficiency rating?

80.5% typical, meeting Level VI and CoC Tier 2 standards.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	CUI Inc.
Applications	ITE (Commercial)
Approval Agency	CB Scheme, CCC, CSA, FCC, IEC, PSE, RCM, UL
Cord Length	60.2" (1.53m)
Current	0.2 A
Efficiency	80.5 %
Form	Wall Mount (Class II)
Input Connector	Multi-Blade (Included)
Input Frequency	47 ~ 63 Hz
Input Type	Multi-Blade (Included)
Input Voltage	90 ~ 264 Vac
No Load Power Consumption	0.06 W
Operating Temperature	0°C ~ 40°C
Output Connector	Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm
Output Current	1.2 A
Output Power	6.0 W
Output Voltage	5 Vdc
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	International
Standard Number	C22.2 No. 60950-1; 60950-1; 62368-1
Storage Temperature	-20°C ~ 60°C
Voltage	5V
