| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Power | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

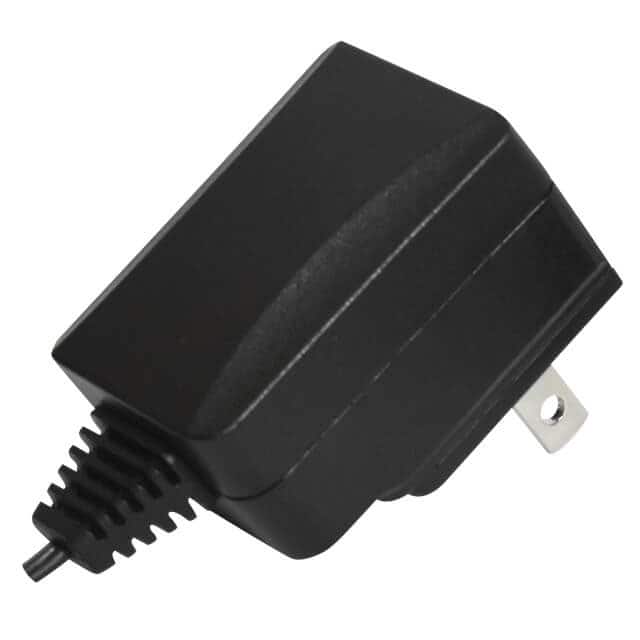

The CUI Inc. SMI6B-15-V-P5R is a compact AC-DC power supply designed for wall-mount applications. It delivers a single regulated 15V output with a maximum current of 0.4A, providing up to 6W of power. The adapter features a universal input voltage range of 90-264 Vac and operates across a frequency range of 47-63 Hz.
This power supply meets DoE Level VI and CoC Tier 2 efficiency standards, ensuring energy savings. It includes over-voltage and short-circuit protections for reliable operation. The unit is certified to UL/EN/IEC 62368-1 and carries safety approvals including UL/cUL, GS, RCM, CCC, and PSE.
With its compact design and interchangeable AC blades, the SMI6B-15-V-P5R is suitable for various ITE (Commercial) applications. It operates within a temperature range of 0°C to 40°C and features a positive center polarization for its output connector.
The SMI6B-15-V-P5R provides a 15Vdc output voltage at a maximum current of 0.4A.
The power supply accepts a universal input voltage range of 90 to 264 Vac.
The maximum power output for this unit is 6W.
This power supply meets DoE Level VI and CoC Tier 2 efficiency standards.
The operating temperature range is from 0°C to 40°C.
It has safety approvals including UL/cUL, GS, RCM, CCC, PSE, and is certified to UL/EN/IEC 62368-1.
