SMI6B-15-V-MUB The CUI Inc. SMI6B-15-V-MUB is a 6W AC-DC wall mount adapter providing a single 15V output. It features a universal input voltage range of 90-264 Vac and meets DoE Level VI efficiency standards.
Mfr Part #:

SMI6B-15-V-MUB

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. SMI6B-15-V-MUB is a 6W AC-DC wall mount adapter providing a single 15V output. It features a universal input voltage range of 90-264 Vac and meets DoE Level VI efficiency standards.
Stock on Request

SMI6B-15-V-MUB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Input Connector
Input Frequency
Input Type
Input Voltage
No Load Power Consumption
Operating Temperature
Output Connector
Power (Watts)
Region Utilized
SVHC Present
Standard Number
Storage Temperature
Voltage
View Similar Products (0)

SMI6B-15-V-MUB Description

Short technical summary and product information.

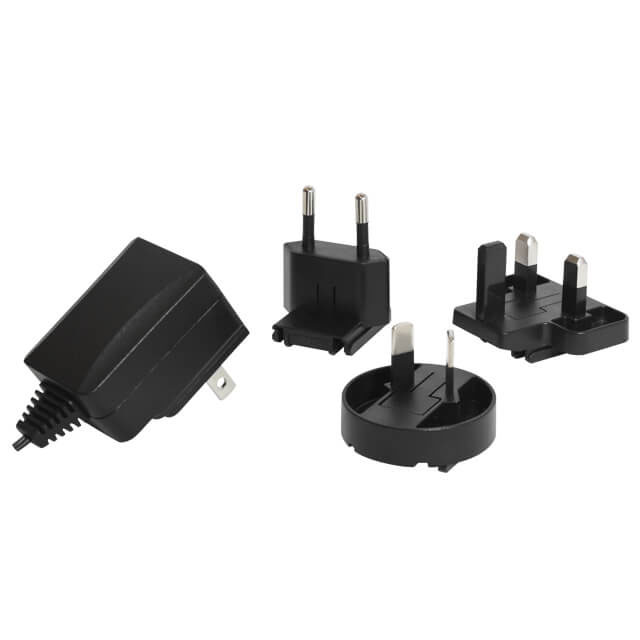

This AC-DC wall mount adapter from CUI Inc., part of the SMI6B series, delivers a regulated 15V output with a maximum current of 400mA, totaling 6W of power. It is designed for universal input, accepting a wide voltage range from 90 to 264 Vac and a frequency of 47 to 63 Hz.



The adapter boasts DoE Level VI and CoC Tier 2 efficiency compliance, with an average efficiency of 80.9% and a low no-load power consumption of 0.06W typical. It includes over-voltage and short-circuit protections for reliable operation.



Featuring a compact design with dimensions of 47.0mm x 34.5mm x 26.4mm, this Class II wall mount adapter comes with interchangeable multi-blades for international use and a USB Micro output connector. It is certified to UL/EN/IEC 62368-1 standards and carries multiple safety approvals including UL/cUL, GS, RCM, CCC, and PSE.



Ideal for ITE (Commercial) applications, the SMI6B-15-V-MUB offers a robust solution for power conversion needs requiring international compliance and reliable performance.

SMI6B-15-V-MUB Quick Information

Product Type: AC DC Desktop, Wall Adapter
Series: SMI6B
Canonical Name: CUI Inc. SMI6B Series AC-DC Power Supply, 15V, 0.4A, 6W
Subcategory: Wall Adapter

SMI6B-15-V-MUB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMI6B-15-V-MUB Features

  • Universal 90-264 Vac input voltage range.
  • Provides a single 15V output at 6W.
  • Meets DoE Level VI efficiency standards.
  • Compact wall mount (Class II) design.
  • Includes interchangeable AC blades and USB Micro output.

SMI6B-15-V-MUB Applications

  • Ideal for commercial ITE equipment.
  • Suitable for portable devices requiring 15V.
  • Use in international wall outlet applications.
  • Compliant with global safety standards.

SMI6B-15-V-MUB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range?

The input voltage range is 90 to 264 Vac.

What is the package type?

The adapter is a Wall Mount (Class II) with a USB Micro output connector.

What is the operating temperature range?

The operating temperature range is 0 to 40 °C.

What is the output voltage and current?

The output is 15 Vdc at 400 mA (6W).

What is the efficiency?

The average efficiency is 80.9%.

What protections are included?

Over current protection (0.8A minimum) and short circuit protection with auto recovery.

What is the no load power consumption?

Typical no load power consumption is 0.06 W, maximum 75 mW.
