| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Turn On Time | |
| Voltage | |
| Weight | |
| Width |

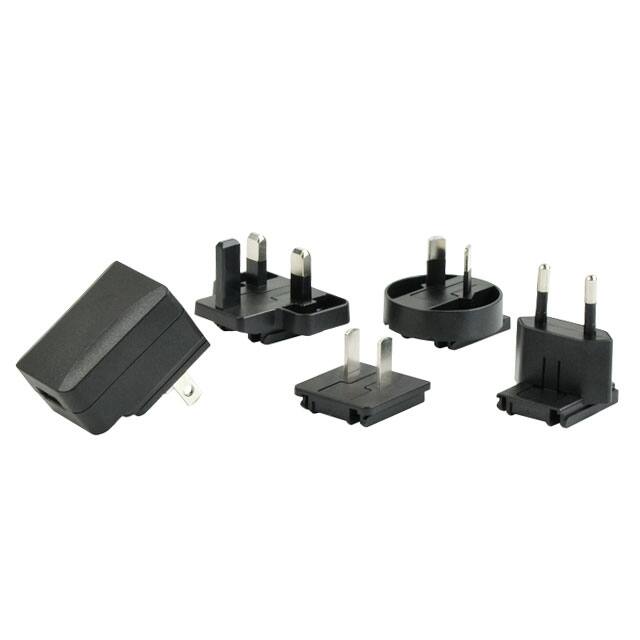

The CUI Inc. SMI5-5-V-I38 is a versatile AC-DC power supply designed for wall mounting. It delivers a stable 5V output at up to 5W of continuous power. This adapter meets DoE Level VI and CoC Tier 2 efficiency standards, ensuring energy-efficient operation with a no-load power consumption below 0.075W.
Featuring a universal input voltage range (100-240 Vac) and interchangeable AC blades, this power supply is suitable for global use. It includes over-voltage and short-circuit protections for enhanced safety. The output is provided via a USB Type A receptacle, making it convenient for various electronic devices.
With safety approvals including UL/cUL, RCM, CCC, PSE, and UKCA, and certified to UL/EN/IEC 62368 standards, the SMI5-5-V-I38 is built for reliability and compliance in ITE (Commercial) applications. Its compact mechanical dimensions of 47 x 34.5 x 26.5 mm make it suitable for space-constrained designs.
The output voltage is 5 Vdc.
The maximum output current is 1 A.
The operating temperature range is 0°C to 40°C.
It is a Wall Mount (Class II) adapter.
It has UL/cUL, RCM, CCC, PSE, and UKCA safety approvals.
The input voltage range is 100~240 Vac.
It meets Level VI and CoC Tier 2 efficiency standards.
