| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Lead Style | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

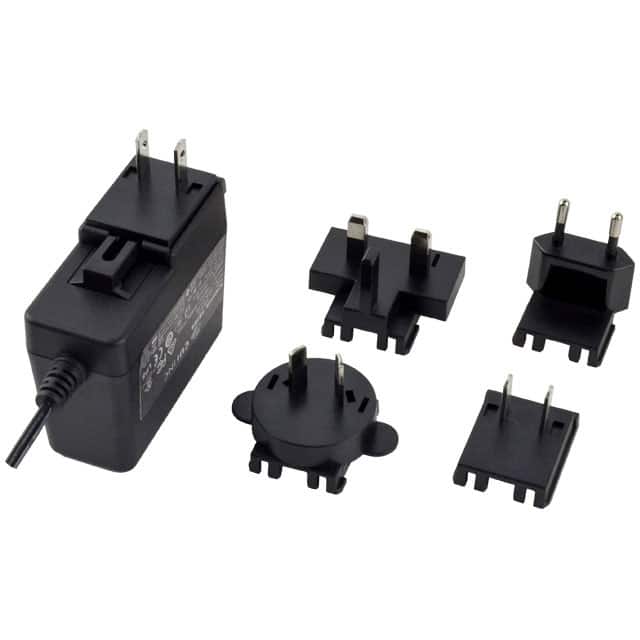

The CUI Inc. SMI36-24-B-ST is a versatile AC-DC power supply designed for desktop and wall-mount applications. It delivers a continuous 36W of power with a stable 24V output at 1.5A.
This power supply operates across a universal input voltage range of 90-264 Vac and 47-63 Hz, making it suitable for global use. It boasts DoE Level VI and CoC Tier 2 efficiency compliance, ensuring minimal energy waste with a no-load power consumption of less than 0.075W. The unit includes over-voltage, over-current, and short-circuit protections for enhanced safety.
Designed for ease of integration, the SMI36-24-B-ST features interchangeable AC blades for worldwide compatibility and comes with a UK plug. Its compact dimensions (78.5mm x 35.3mm x 66.0mm) and wall-mount form factor (Class II) make it ideal for various ITE (Commercial) applications. Safety approvals include UL/cUL, RCM, CCC, PSE, and UKCA, certified to 60950-1 and 62368-1 standards.
The SMI36-24-B-ST has a nominal output voltage of 24 Vdc.
The maximum output current for the SMI36-24-B-ST is 1.5 A.
The SMI36-24-B-ST has a power rating of 36 W.
The SMI36-24-B-ST meets DoE Level VI and CoC Tier 2 efficiency standards.
The operating temperature range for the SMI36-24-B-ST is 0°C to 40°C.
The SMI36-24-B-ST uses a multi-blade input connector, which is included.
The SMI36-24-B-ST has safety approvals including UL/cUL, RCM, CCC, PSE, and UKCA.
