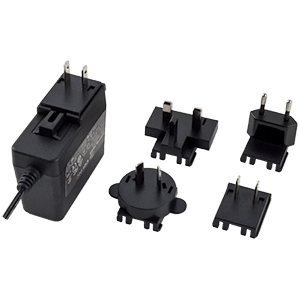

The CUI Inc. SMI36-12-K-P5 is a versatile AC-DC wall mount adapter designed for various applications requiring a stable 12V, 3A power output, delivering up to 36W of continuous power. It operates within a universal input voltage range of 90-264 Vac, making it suitable for global use with interchangeable AC blades.
This power supply meets stringent efficiency requirements, complying with DoE Level VI and CoC Tier 2 standards, and boasts a low no-load power consumption of less than 0.075W. It incorporates essential protections including over-voltage, over-current, and short-circuit protection for enhanced safety and reliability.
Certified to UL/cUL, RCM, CCC, and PSE standards, and compliant with 60950-1 and 62368-1 safety standards, the SMI36-12-K-P5 is suitable for ITE (Commercial) applications. Its compact dimensions (78.5 x 35.3 x 66 mm) and wall mount form factor facilitate easy integration into various designs.
The SMI36-12-K-P5 provides an output voltage of 12Vdc at a maximum current of 3A.
The SMI36-12-K-P5 adapter has a maximum power output of 36W.
The SMI36-12-K-P5 accepts a universal input voltage range of 90 to 264 Vac.
The operating temperature range for the SMI36-12-K-P5 is 0°C to 40°C.
Yes, the SMI36-12-K-P5 meets DoE Level VI and CoC Tier 2 efficiency standards.
The SMI36-12-K-P5 is certified to UL/cUL, RCM, CCC, and PSE safety standards.
