| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Width |

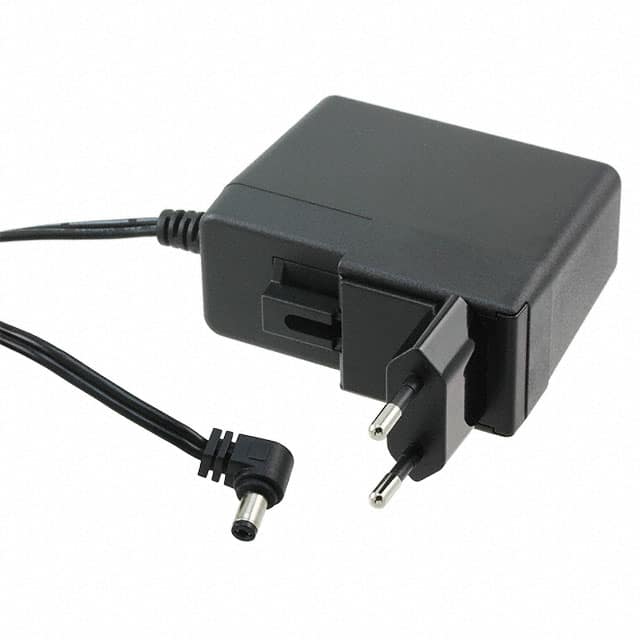

The CUI Inc. SMI36-12-E-P5R is a versatile AC-DC power supply designed for ITE (Commercial) applications. It delivers a continuous 36W of power with a stable 12V output at up to 3A.
This power supply features a universal input voltage range of 90-264 Vac and operates at input frequencies of 47-63 Hz. It meets DoE Level VI and CoC Tier 2 efficiency standards, ensuring energy savings with a no-load power consumption of less than 0.075W. The unit includes over-voltage, over-current, and short-circuit protections for enhanced safety.
Designed for global use, it comes with interchangeable AC blades and is certified to UL/cUL, RCM, CCC, and PSE safety approvals, complying with standards such as 60950-1 and 62368-1. The SMI36-12-E-P5R is housed in a compact wall-mount form factor with dimensions of 78.5mm x 35.3mm x 66.0mm.
The input voltage range is 90 to 264 Vac at 47 to 63 Hz.
It provides a nominal 12 Vdc output at up to 3.0 A, with a maximum output power of 36 W.
The operating temperature range is 0°C to 40°C.
It carries CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, and UL approvals.
Yes, short circuit protection shuts down the output with auto recovery.
Isolation voltage between input and output is 3000 Vac.
Average efficiency is 88.7%, and the adapter is CoC Tier 2 compliant.
