SMI24-12-V-P5R The CUI Inc. SMI24-12-V-P5R is a 24W AC-DC wall mount adapter providing a 12V output at 2A. It features a universal input voltage range and meets DoE Level VI efficiency standards.
Mfr Part #:

SMI24-12-V-P5R

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. SMI24-12-V-P5R is a 24W AC-DC wall mount adapter providing a 12V output at 2A. It features a universal input voltage range and meets DoE Level VI efficiency standards.
Stock on Request

SMI24-12-V-P5R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Height
Input Connector
Input Frequency
Input Type
Input Voltage
Length
No Load Power Consumption
Operating Temperature
Output Connector
Output Current
Output Power
Output Voltage
Polarization
Power (Watts)
Region Utilized
SVHC Present
Standard Number
Voltage
Weight
Width
View Similar Products (0)

SMI24-12-V-P5R Description

Short technical summary and product information.

The CUI Inc. SMI24-12-V-P5R is an AC-DC power supply designed as a wall mount adapter. It delivers a continuous 24W of power with a nominal output voltage of 12V and a maximum output current of 2.0A. The adapter operates within a universal input voltage range of 90 to 264 VAC and a frequency range of 47 to 63 Hz.



This power supply meets DoE Level VI and CoC Tier 2 efficiency standards, with a typical efficiency of 87.2% and a no-load power consumption of less than 0.075W. It includes over-voltage, over-current, and short-circuit protections for enhanced safety. The unit is certified to UL/cUL, RCM, CCC, and PSE safety approvals and complies with 60950-1 and 62368-1 standards.

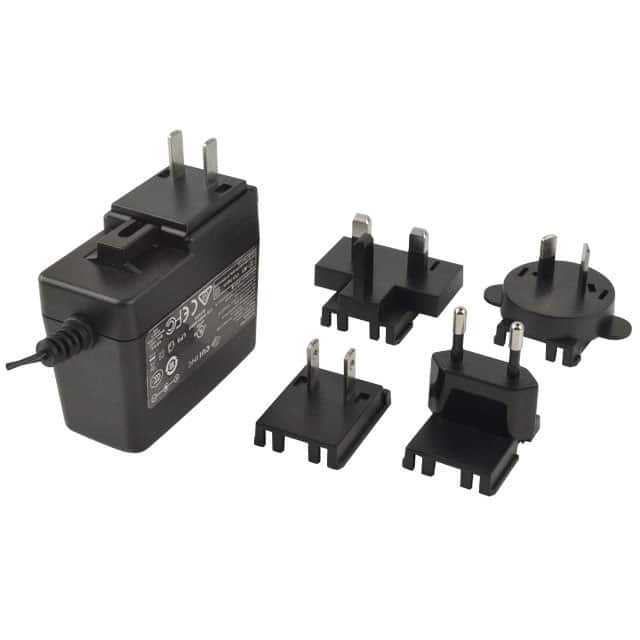

The adapter features interchangeable AC blades for global use and comes with a positive center polarity barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm). Its dimensions are 75.0mm x 35.0mm x 65.6mm, and it operates within a temperature range of 0°C to 40°C.

SMI24-12-V-P5R Quick Information

Product Type: AC DC Desktop, Wall Adapter
Series: SMI24
Canonical Name: CUI Inc. SMI24 Series AC-DC Power Supply, 12V, 2A, 24W
Subcategory: Wall Mount Adapter

SMI24-12-V-P5R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMI24-12-V-P5R Features

  • 24W continuous power output.
  • Universal input voltage range (90-264 VAC).
  • DoE Level VI, CoC Tier 2 efficiency.
  • Over-voltage, over-current, short-circuit protections.
  • Interchangeable AC blades for global use.

SMI24-12-V-P5R Applications

  • For commercial ITE equipment power
  • Suitable for wall-mount adapter applications
  • Used in 12V 24W power supply designs
  • Ideal for global multi-blade input use

SMI24-12-V-P5R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current for the SMI24-12-V-P5R?

The SMI24-12-V-P5R has a nominal output voltage of 12 Vdc and a maximum output current of 2.0 A.

What is the maximum power output of the SMI24-12-V-P5R?

The maximum power output for the SMI24-12-V-P5R is 24.0 W.

What is the input voltage range for this AC-DC adapter?

The input voltage range for the SMI24-12-V-P5R is 90 to 264 Vac.

What are the efficiency ratings for the SMI24-12-V-P5R?

The SMI24-12-V-P5R meets DoE Level VI and CoC Tier 2 efficiency standards, with an average efficiency of 87.2%.

What safety approvals does the SMI24-12-V-P5R have?

The SMI24-12-V-P5R has safety approvals from UL/cUL, RCM, CCC, and PSE.

What is the operating temperature range for this adapter?

The operating temperature range for the SMI24-12-V-P5R is 0°C to 40°C.

What type of output connector does the SMI24-12-V-P5R use?

The SMI24-12-V-P5R uses a Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm output connector.
