| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Weight | |
| Width |

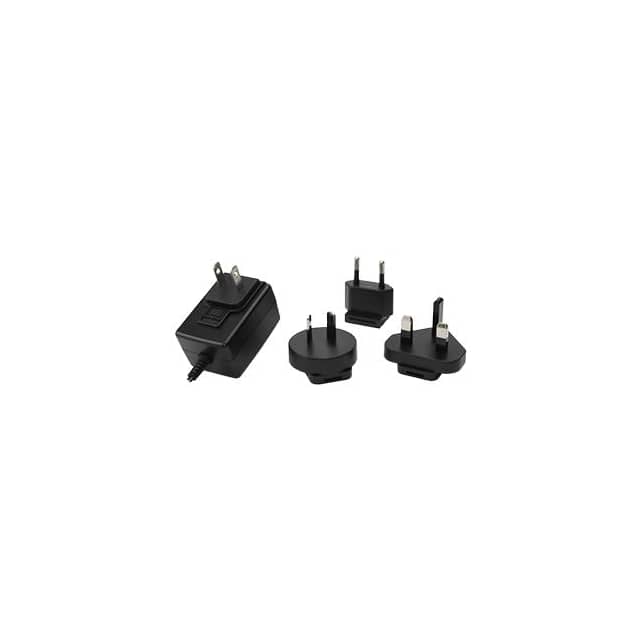

The CUI Inc. SMI12-5-VW-CUB is an external AC-DC power supply designed for commercial ITE applications. It operates with a universal input voltage range of 90-264 VAC and provides a stable 5 Vdc output at a maximum current of 2A, delivering up to 10W of continuous power.
This power supply meets DoE Level VI and CoC Tier 2 efficiency standards, ensuring energy savings. It includes essential protections such as over-voltage, over-current, and short-circuit protection for reliable operation. The unit is certified to IEC 62368-1 and carries safety approvals including UL/cUL, CE, PSE, RCM, and FCC.
Featuring a compact wall mount (Class II) form factor with dimensions of 69.0mm x 31.8mm x 47.5mm, it is suitable for various space-constrained designs. The SMI12-5-VW-CUB utilizes an interchangeable multi-blade input connector for global use and a USB C receptacle for output. Its operating temperature range is from -10°C to 40°C.
The SMI12-5-VW-CUB provides a 5 Vdc output at a maximum current of 2 A.
The maximum continuous power output for the SMI12-5-VW-CUB is 10 W.
The SMI12-5-VW-CUB meets DoE Level VI and CoC Tier 2 efficiency standards.
The operating temperature range for the SMI12-5-VW-CUB is -10°C to 40°C.
The SMI12-5-VW-CUB is certified to IEC 62368-1 and approved by CE, cUIus, FCC, and PSE.
