| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Package / Case | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage | |
| Weight | |
| Width |

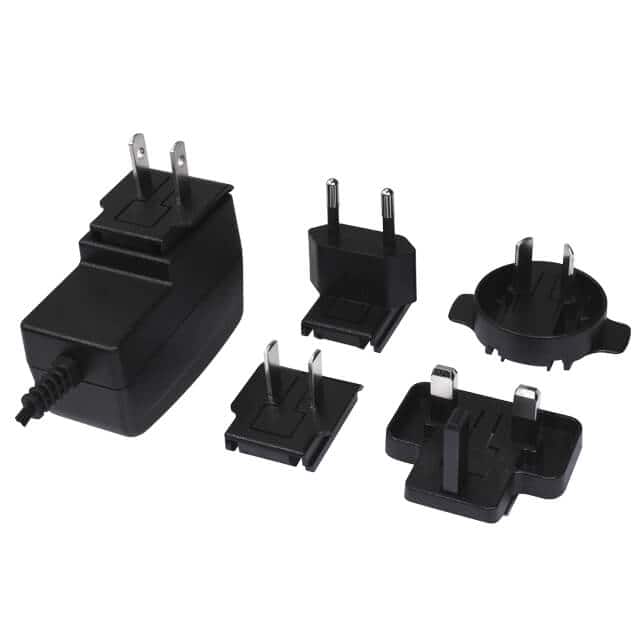

The CUI Inc. SMI12-5-VB-P6 is an external AC-DC power supply designed for commercial ITE applications. It provides a stable 5V output with a maximum current of 2A, delivering up to 10W of continuous power.
This power supply meets DoE Level VI and CoC Tier 2 efficiency standards, ensuring energy savings. It features a universal input voltage range of 90-264 Vac and a frequency range of 47-63 Hz. Protections include over-voltage, over-current, and short-circuit with auto-recovery.
The unit is housed in a compact wall-mount (Class II) form factor with dimensions of 69.0mm x 31.8mm x 47.5mm. It utilizes a multi-blade input connector for global use and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm). The operating temperature range is -10°C to 40°C.
The SMI12-5-VB-P6 accepts a universal AC input voltage of 90-264 Vac.
The adapter provides a maximum output power of 10W at 5V and 2A.
The adapter is a wall mount (Class II) form factor.
The operating temperature range is -10°C to 40°C.
The adapter meets Level VI and CoC Tier 2 efficiency standards.
The adapter is approved by CE, cUIus, FCC, and PSE.
It includes over-voltage protection (12V), over-current protection (3A), and short-circuit protection with auto recovery.
