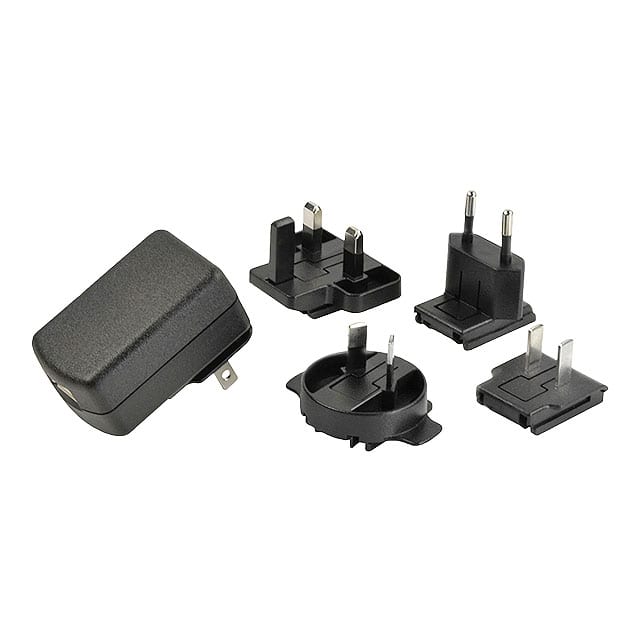

SMI10-5-V-I38 The CUI Inc. SMI10-5-V-I38 is a 10W AC-DC power supply with a 5V output and a USB Type A receptacle. It features universal input voltage and interchangeable AC blades for global use.
Mfr Part #:

SMI10-5-V-I38

Mfr Name: CUI Inc.
CUI Inc.
The CUI Inc. SMI10-5-V-I38 is a 10W AC-DC power supply with a 5V output and a USB Type A receptacle. It features universal input voltage and interchangeable AC blades for global use.
Stock on Request

SMI10-5-V-I38 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Form
Frequency
Height
Input Connector
Input Type
Length
Mounting Type
No Load Power Consumption
Operating Temperature
Output Connector
Output Current
Output Voltage
Power (Watts)
Region Utilized
Standard Number
Storage Temperature
Voltage
Weight
Width
View Similar Products (0)

SMI10-5-V-I38 Description

Short technical summary and product information.

The CUI Inc. SMI10-5-V-I38 is a compact AC-DC power supply designed for various applications. It delivers up to 10W of continuous power with a stable 5V output and a maximum current of 2A, featuring a USB Type A receptacle for connectivity.



This power supply operates with a universal input voltage range of 90-264 Vac and 47-63 Hz frequency, making it suitable for international use. It is equipped with interchangeable AC blades, simplifying global deployment. The unit meets DoE Level VI and CoC Tier 2 efficiency standards, with a low no-load power consumption of less than 0.075W.



Safety features include over-voltage, over-current, and short-circuit protections. The SMI10-5-V-I38 is certified to UL/EN/IEC 62368 standards and carries multiple safety approvals including UL/cUL, RCM, CCC, and PSE. Its dimensions are 60.9 x 38 x 29.2 mm, and it is designed for wall-mount applications.



Key electrical specifications include a load regulation of ±5%, a start-up time of 3 seconds, and a hold-up time of 5 ms. The operating temperature range is 0°C to 40°C, with humidity tolerance from 20% to 85% non-condensing.

SMI10-5-V-I38 Quick Information

Product Type: AC-DC Power Supply
Series: SMI10-USB
Canonical Name: CUI Inc. SMI10-5-V-I38 AC-DC Power Supply
Subcategory: Wall Mount Adapter

SMI10-5-V-I38 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMI10-5-V-I38 Features

  • Up to 10W continuous power output.
  • Universal input voltage range (90-264 Vac).
  • Interchangeable AC blades for global use.
  • DoE Level VI and CoC Tier 2 efficiency.
  • Over voltage and short circuit protections.

SMI10-5-V-I38 Applications

  • Powers low voltage embedded control systems.
  • Supplies dedicated 5V rails for IoT devices.
  • Drives industrial sensor networks and modules.
  • Supports commercial display and signage equipment.
  • Provides backup power for communication hardware.

SMI10-5-V-I38 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage and current for the SMI10-5-V-I38?

The SMI10-5-V-I38 provides a nominal output voltage of 5 Vdc and a maximum output current of 2 A.

What is the maximum power output of the SMI10-5-V-I38 power supply?

The SMI10-5-V-I38 power supply has a maximum power output of 10 W.

What is the input voltage range for the SMI10-5-V-I38?

The SMI10-5-V-I38 accepts a universal input voltage range of 90 to 264 Vac.

Does the SMI10-5-V-I38 meet energy efficiency standards?

Yes, the SMI10-5-V-I38 meets DoE Level VI and CoC Tier 2 efficiency standards.

What safety certifications does the SMI10-5-V-I38 have?

The SMI10-5-V-I38 is certified to UL/EN/IEC 62368 and has safety approvals including UL/cUL, RCM, CCC, and PSE.

What are the operating temperature limits for this power supply?

The SMI10-5-V-I38 can operate within a temperature range of 0°C to 40°C.
