| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Driver Circuitry | |
| Frequency | |
| Height | |
| Input Type | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Port Location | |
| Ratings | |
| Sound Pressure Level (SPL) | |
| Technology | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range | |
| Width |

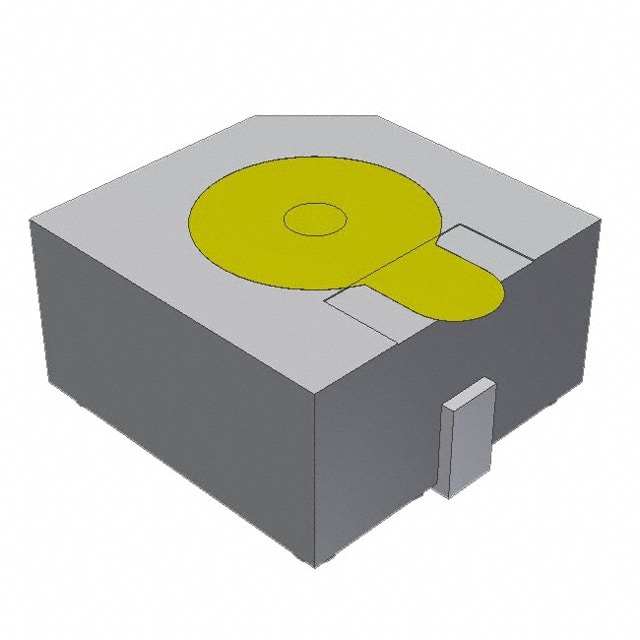

The PUI Audio SMI-1324-TW-3V-R is an electromechanical magnetic buzzer designed for surface-mount assembly. It operates at a nominal voltage of 3V DC with a voltage range of 2V to 5V, drawing 30mA of current. The buzzer produces a single-tone output at a frequency of 2.4kHz with a sound pressure level of 75dB measured at 10cm.
This component features an internally driven indicator driver circuitry, making it a self-contained audible alert solution. The package measures 12.80mm by 12.80mm with a height of 7.60mm, and termination is via solder pads for SMD mounting. The port is located on the top of the device.
The SMI-1324-TW-3V-R is rated as washable, suitable for board washing processes after soldering. It operates over a temperature range of -20°C to 70°C, making it appropriate for a variety of indoor and industrial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.84 | $7.84 |
| 10+ | $6.02 | $6.02 |
| 25+ | $5.44 | $5.44 |
| 50+ | $5.05 | $5.05 |
| 100+ | $4.69 | $4.69 |
| 250+ | $4.27 | $4.27 |
| 500+ | $3.97 | $3.97 |
| 1,000+ | $3.78 | $3.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal operating voltage is 3V DC, with a voltage range of 2V to 5V.
It produces a sound pressure level of 75dB when measured at 10cm with a 3V input.
The buzzer outputs a single tone at 2.4kHz.
It is designed for surface mount (SMD) assembly with solder pad termination.
The package is 12.80mm long by 12.80mm wide, with a height of 7.60mm.
Yes, it is rated as washable, allowing for board washing processes after soldering.
The operating temperature range is -20°C to 70°C.
