| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

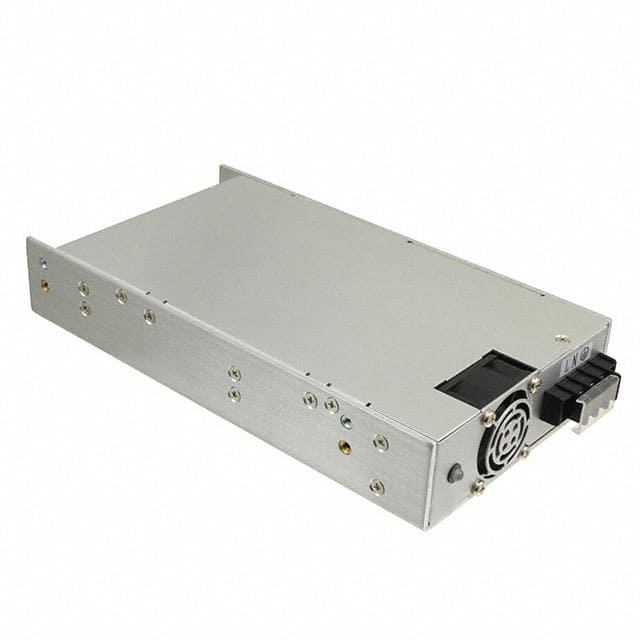

The XP Power SMH600PS48-EF is an AC/DC power supply from the SMH600 series, designed for ITE (Commercial) applications. It delivers a robust 600W of power with a single 48VDC output.
Key electrical specifications include an input voltage range of 90-264 VAC and an efficiency of 90% at full load. The unit offers features such as Adjustable Output, PFC, Remote On/Off, and Remote Sense, providing flexibility in system integration. It also boasts a high isolation voltage of 3 kV.
Mechanically, this power supply is designed for chassis mounting and comes in an enclosed package with dimensions of 228.6mm x 127.0mm x 40.6mm. The operating temperature range is from 0°C to 70°C, with derating applied above 50°C. It complies with EMC standards for conducted and radiated emissions at Level B.
90-264 VAC.
48 VDC at 12.5 A.
0°C to 70°C with derating.
Enclosed chassis mount.
90% at 230V full load.
Adjustable output, PFC, remote on/off, remote sense, universal input.
3 kV.
