Mfr Part #:

SMH25-05WS

Name: SMH25-05WS
Brand: JAM
SKU: SMH25-05WS

Mfr Name: JAM

Description:

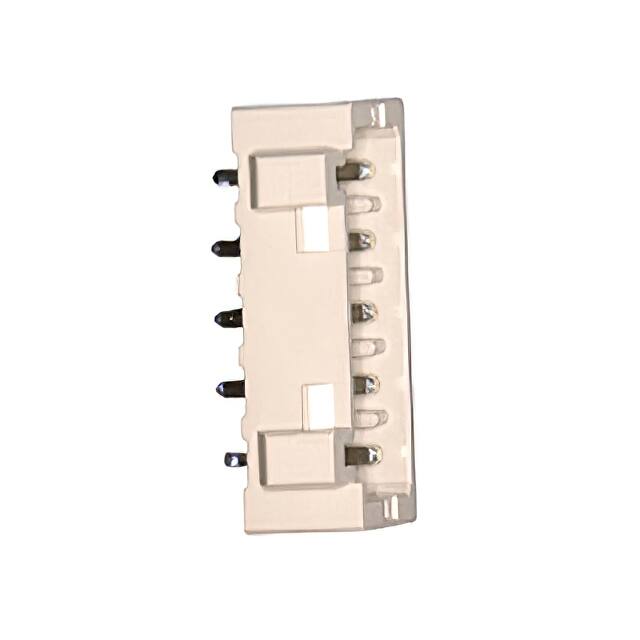

2.5 MM W TO B CONNECTOR 5P WAFER

Stock on Request

SMH25-05WS Description

Short technical summary and product information.

2.5 MM W TO B CONNECTOR 5P WAFER

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	JAM
Connector Type	Header
Contact Finish	Tin
Contact Length	0.126" (3.20mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Latch Holder
Insulation Color	White
Insulation Height	0.252" (6.40mm)
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	5
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature	-40°C ~ 85°C
Pitch	0.098" (2.50mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Press-Fit, Solder
Voltage Rating	250VAC/DC
