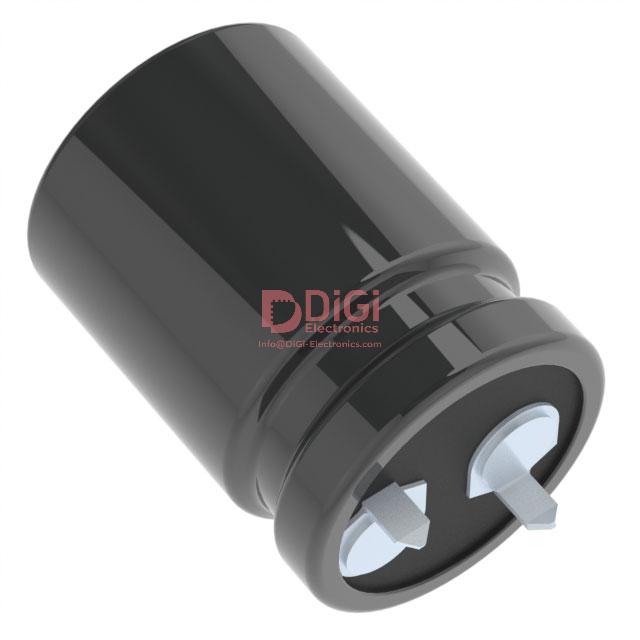

SMH16VN123M22X30T2 The United Chemi-Con SMH16VN123M22X30T2 is a 12000µF, 16V aluminum electrolytic capacitor. It features a radial, can - snap-in package and operates from -40°C to 85°C.
Mfr Part #:

SMH16VN123M22X30T2

Available from 1 distributors
Mfr Name: United Chemi-Con
United Chemi-Con
The United Chemi-Con SMH16VN123M22X30T2 is a 12000µF, 16V aluminum electrolytic capacitor. It features a radial, can - snap-in package and operates from -40°C to 85°C.
✓ Total Stock: 2,200 pcs
$ Price Range: $1.16

SMH16VN123M22X30T2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,200 pcs
On Request
2200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMH16VN123M22X30T2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Capacitance
ESR (Equivalent Series Resistance)
Height
Lead Spacing
Mounting Type
Operating Temperature
Polarization
Tolerance
Voltage
View Similar Products (0)

SMH16VN123M22X30T2 Description

Short technical summary and product information.

This United Chemi-Con SMH16VN123M22X30T2 is an aluminum electrolytic capacitor with a capacitance of 12000 µF and a rated voltage of 16 V. It offers a tolerance of ±20% and an equivalent series resistance (ESR) of 55mOhm at 120Hz.



The capacitor is designed for general purpose applications and operates within a temperature range of -40°C to 85°C. Its rated lifetime is 2000 hours at 85°C. The component features a polar design and comes in a radial, can - snap-in package.



Key electrical characteristics include a ripple current of 2.86 A at 120 Hz and 3.0888 A at 100 kHz. The lead spacing is 10.00mm, with a diameter of 22.00mm and a maximum seated height of 30.00mm.

SMH16VN123M22X30T2 Quick Information

Product Type: Aluminum Electrolytic Capacitor
Series: SMH
Canonical Name: United Chemi-Con SMH16VN123M22X30T2 Aluminum Electrolytic Capacitor
Subcategory: Aluminum Electrolytic

SMH16VN123M22X30T2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMH16VN123M22X30T2 Estimated Pricing

Qty Low High
1+ $1.16 $1.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMH16VN123M22X30T2 Features

  • 12000µF capacitance with ±20% tolerance.
  • Rated for 16V DC operation.
  • Low ESR of 55mOhm at 120Hz.
  • 2000 hours lifetime at 85°C.
  • Radial, can - snap-in package.

SMH16VN123M22X30T2 Applications

  • Filters switching noise in general purpose power supplies.
  • Stabilizes DC voltage rails in industrial control systems.
  • Provides bulk energy storage for motor drive circuits.
  • Smooths rectified AC signals in consumer electronics.
  • Supports audio equipment power distribution networks.

SMH16VN123M22X30T2 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the capacitance of the SMH16VN123M22X30T2 capacitor?

The capacitance is 12000 µF.

What is the rated voltage for this aluminum electrolytic capacitor?

The rated voltage is 16 V.

What is the operating temperature range for the SMH16VN123M22X30T2?

The operating temperature range is -40°C to 85°C.

What is the ESR of the SMH16VN123M22X30T2 at 120Hz?

The ESR is 55mOhm at 120Hz.

What is the expected lifetime of this capacitor at 85°C?

The expected lifetime is 2000 hours at 85°C.

What type of package does the SMH16VN123M22X30T2 use?

It uses a Radial, Can - Snap-In package.
