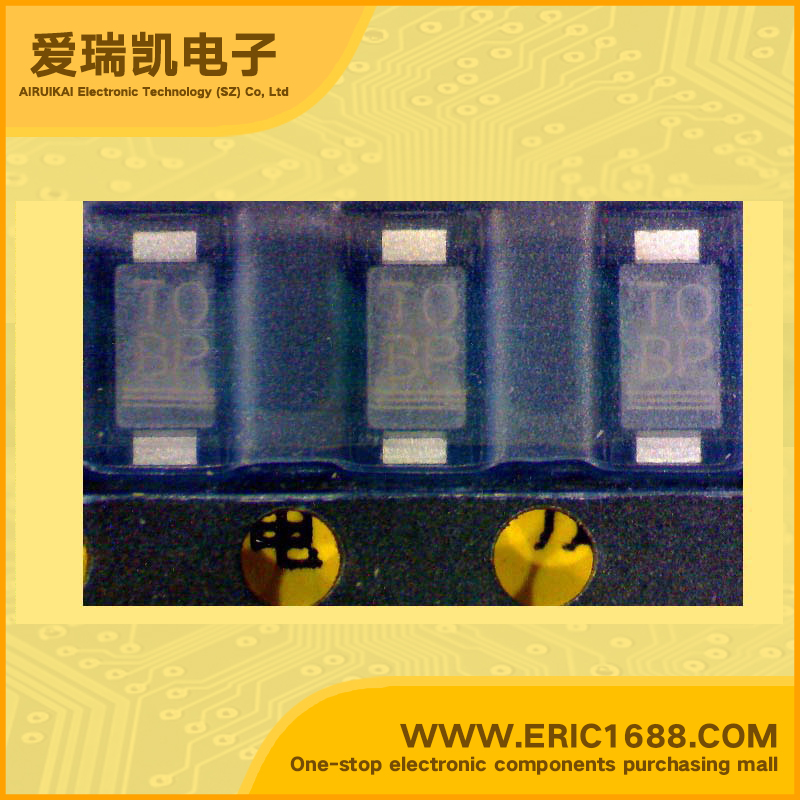

SMF16A-GS08 The Vishay Dale SMF16A-GS08 is a unidirectional TVS diode designed for surface mount applications. It offers 16V reverse standoff voltage and 7.7A peak surge current.
Mfr Part #:

SMF16A-GS08

Available from 1 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale SMF16A-GS08 is a unidirectional TVS diode designed for surface mount applications. It offers 16V reverse standoff voltage and 7.7A peak surge current.
✓ Total Stock: 66,000 pcs
$ Price Range: $0.99

SMF16A-GS08 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
66,000 pcs
On Request
66000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMF16A-GS08 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Halogen Free
Lead Spacing
Mounting Type
Peak Forward Surge Current
Polarization
Response Time
View Similar Products (0)

SMF16A-GS08 Description

Short technical summary and product information.

The SMF16A-GS08 from Vishay Dale is a surface mount Transient Voltage Suppression (TVS) diode. It is optimized for ESD protection of data lines, meeting IEC 61000-4-2 standards with ±30 kV contact and air discharge protection.



This TVS diode features a 16V reverse standoff voltage and a breakdown voltage of 17.8V. It can handle a peak pulse power dissipation of 200W with a 10/1000 µs waveform and a peak forward surge current of 7.7A. The device has a very fast response time and is AEC-Q101 qualified.



Packaged in a low-profile SOD-123/1206 surface mount package, the SMF16A-GS08 is suitable for various surface mounted applications. It is compliant with RoHS directive 2002/95/EC and WEEE 2002/96/EC, and is halogen-free according to IEC 61249-2-21 definition.

SMF16A-GS08 Quick Information

Product Type: TVS Diode
Canonical Name: SMF16A-GS08 Unidirectional TVS Diode
Subcategory: Transient Voltage Suppression

SMF16A-GS08 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: e3 - Sn

SMF16A-GS08 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMF16A-GS08 Features

  • Surface mount ESD protection diode.
  • 16V reverse standoff voltage.
  • 7.7A peak forward surge current.
  • 200W peak pulse power capability.
  • Optimized for LAN protection applications.

SMF16A-GS08 Applications

  • Ideal for ESD protection of data lines.
  • Meets IEC 61000-4-2 ESD standards.
  • Suitable for surface mounted applications.
  • Optimized for LAN protection.

SMF16A-GS08 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the reverse standoff voltage of the SMF16A-GS08?

The reverse standoff voltage is 16V.

What is the peak surge current for the SMF16A-GS08?

The peak forward surge current is 7.7A.

What is the peak pulse power dissipation of the SMF16A-GS08?

The peak pulse power dissipation is 200W for a 10/1000 µs waveform.

What package type is the SMF16A-GS08 available in?

The SMF16A-GS08 is available in a SOD-123/1206 package.

Is the SMF16A-GS08 AEC-Q101 qualified?

Yes, the SMF16A-GS08 is AEC-Q101 qualified.

Does the SMF16A-GS08 meet IEC 61000-4-2 ESD standards?

Yes, it provides ESD protection according to IEC 61000-4-2 with ±30 kV contact discharge and ±30 kV air discharge.
