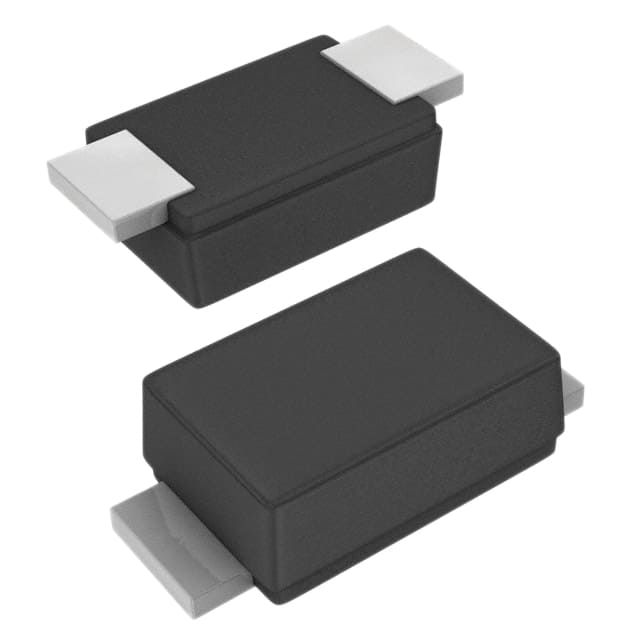

SMF15A Littelfuse SMF15A is a 400W unidirectional TVS diode with 15V reverse standoff voltage and 24.4V clamping voltage in a surface-mount SOD-123FL package.
Mfr Part #:

SMF15A

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Littelfuse SMF15A is a 400W unidirectional TVS diode with 15V reverse standoff voltage and 24.4V clamping voltage in a surface-mount SOD-123FL package.
✓ Total Stock: 100 pcs

SMF15A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMF15A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Halogen Free
Height
Lead Style
Mounting Type
Operating Temperature
Power
Power Line Protection
Supplier Device Package
Termination Style
Type
Unidirectional Channels
Voltage
View Similar Products (0)

SMF15A Description

Short technical summary and product information.

The Littelfuse SMF15A is a unidirectional TVS diode designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It features a reverse standoff voltage of 15V and a maximum clamping voltage of 24.4V at a peak pulse current of 8.2A.



This device offers a peak pulse power dissipation of 400W for a 10/1000µs waveform and 2000W for an 8/20µs waveform. It provides ESD protection up to 30kV for both air and contact discharge per IEC 61000-4-2. The SMF15A is part of the SMF4L series and is housed in a low-profile SOD-123FL package with a maximum height of 1.08mm.



The SMF15A is suitable for general-purpose applications including I/O interfaces, VCC bus protection, and other vulnerable circuits in consumer electronics, portable devices, and power supplies. It is RoHS compliant, halogen-free, and meets MSL level 1 per J-STD-020.

SMF15A Quick Information

Product Type: TVS Diode
Series: SMF4L
Canonical Name: Littelfuse SMF15A TVS Diode, 15V Reverse Standoff, 24.4V Clamping, SOD-123FL
Subcategory: Unidirectional TVS

SMF15A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-Free (Matte Tin)

SMF15A Features

  • 400W peak pulse power at 10/1000µs.
  • 30kV ESD protection per IEC 61000-4-2.
  • Low-profile SOD-123FL package, 1.08mm height.
  • RoHS compliant and halogen-free.
  • Operating temperature range -55°C to 150°C.

SMF15A Applications

  • Protects I/O interfaces from voltage transients.
  • Suitable for VCC bus protection circuits.
  • Used in portable and consumer electronic devices.
  • Ideal for power supply transient protection.

SMF15A FAQs

6 frequently asked questions generated from this part’s specifications.
What is the reverse standoff voltage of the SMF15A?

The reverse standoff voltage (V_RWM) is 15V.

What is the clamping voltage of the SMF15A?

The maximum clamping voltage is 24.4V at a peak pulse current of 8.2A.

What is the peak pulse current rating?

The peak pulse current (Ipp) is 8.2A.

What package is the SMF15A available in?

The SMF15A is available in a surface-mount SOD-123FL package.

Does the SMF15A provide ESD protection?

Yes, it provides ESD protection of 30kV for both air and contact discharge per IEC 61000-4-2.

What is the operating temperature range?

The operating temperature range is -55°C to 150°C.
