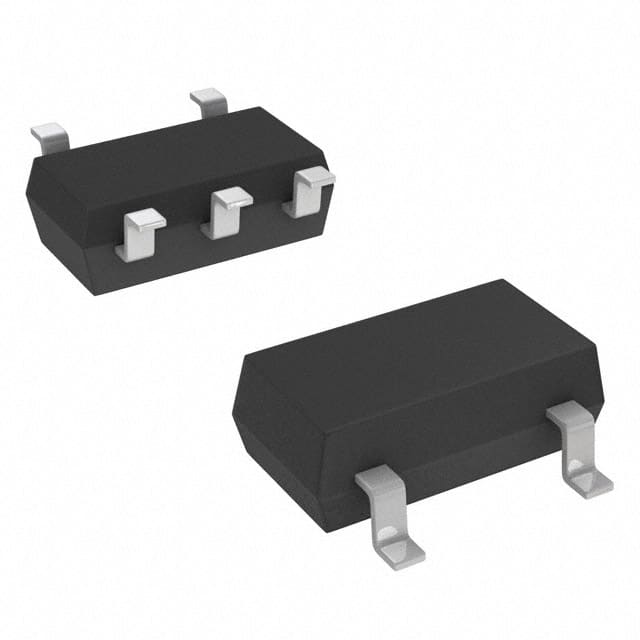

The Semtech SMF05.TCT is a Zener-type transient voltage suppression (TVS) diode array designed for general purpose circuit protection. It features a reverse standoff voltage of 5V and a maximum clamping voltage of 12.5V, providing robust protection against voltage transients. With a peak pulse current rating of 12A (8/20µs waveform) and a peak pulse power dissipation of 200W, this device is suitable for protecting sensitive electronics from ESD and other transient events.
The SMF05.TCT integrates four unidirectional channels in a single compact SC-70-5 surface mount package, making it ideal for space-constrained applications. It has a typical capacitance of 150pF at 1MHz, which is appropriate for general purpose signal lines. The device operates over a junction temperature range of -55°C to 125°C, ensuring reliable performance in harsh environments.
This TVS diode array is not intended for power line protection, but is well-suited for data lines, I/O ports, and other low-voltage signal interfaces. Its surface mount package (also compatible with 5-TSSOP and SOT-353 footprints) allows for automated assembly and high-density PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
| 10+ | $0.81 | $0.81 |
| 100+ | $0.53 | $0.53 |
| 500+ | $0.41 | $0.41 |
| 1,000+ | $0.37 | $0.37 |
| 3,000+ | $0.33 | $0.33 |
| 6,000+ | $0.30 | $0.30 |
| 9,000+ | $0.29 | $0.29 |
| 15,000+ | $0.27 | $0.27 |
| 21,000+ | $0.27 | $0.27 |
| 30,000+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage (Vrwm) is 5V.
The maximum clamping voltage is 12.5V.
The maximum peak pulse current is 12A under an 8/20µs waveform.
It is available in a 5-TSSOP, SC-70-5, or SOT-353 surface mount package, with the supplier device package being SC-70-5.
It has 4 unidirectional channels.
