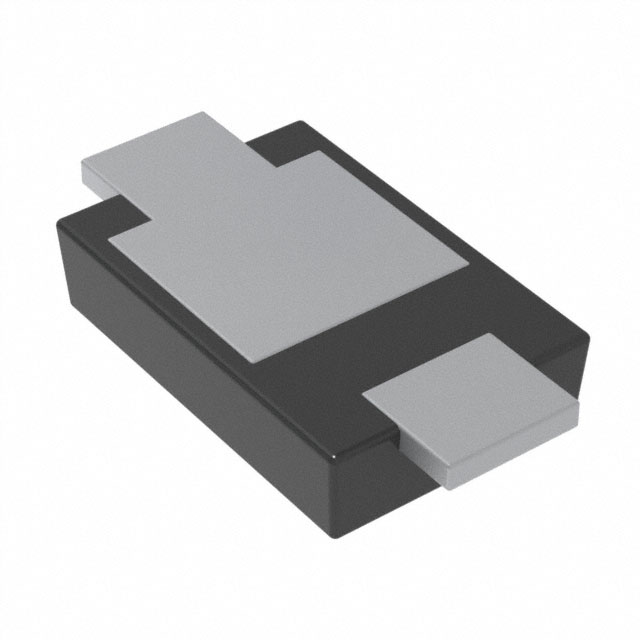

SMD36LHE1-TP The Micro Commercial SMD36LHE1-TP is a Schottky rectifier diode with a 60V reverse voltage rating and a 3A average forward current. It is supplied in a SOD-123HE1 package.
Mfr Part #:

SMD36LHE1-TP

Available from 1 distributors
Mfr Name: Micro Commercial
Micro Commercial
The Micro Commercial SMD36LHE1-TP is a Schottky rectifier diode with a 60V reverse voltage rating and a 3A average forward current. It is supplied in a SOD-123HE1 package.
✓ Total Stock: 1,613 pcs
$ Price Range: $0.48

SMD36LHE1-TP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
1,613 pcs
On Request
1613 pcs On Request 1 On Request On Request 21+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMD36LHE1-TP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Halogen Free
Mounting Type
Operating Temperature
Peak Forward Surge Current
Speed
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Voltage
View Similar Products (0)

SMD36LHE1-TP Description

Short technical summary and product information.

The SMD36LHE1-TP is a Schottky rectifier diode manufactured by Micro Commercial Components Corp. It features a maximum DC blocking voltage of 60V and an average forward current of 3A. The device offers a low maximum instantaneous forward voltage of 0.48V at 3A and 35ns reverse recovery time.



Designed for surface mount applications, this diode comes in a SOD-123HE1 package. It operates within a junction temperature range of -55°C to +150°C. The component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.



Key electrical characteristics include a maximum recurrent peak reverse voltage of 60V and a peak forward surge current of 80A for 8.3ms. The typical thermal resistance is 22°C/W junction to lead and 52°C/W junction to ambient.

SMD36LHE1-TP Quick Information

Product Type: Schottky Rectifier Diode
Canonical Name: SMD36LHE1-TP 60V 3A Schottky Rectifier
Subcategory: Rectifier

SMD36LHE1-TP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

SMD36LHE1-TP Estimated Pricing

Qty Low High
1+ $0.48 $0.48

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMD36LHE1-TP Features

  • 60V maximum reverse voltage rating.
  • 3A average forward current capability.
  • Low 0.48V maximum forward voltage.
  • Fast 35ns reverse recovery time.
  • Surface mount SOD-123HE1 package.

SMD36LHE1-TP Applications

  • Low voltage power supply rectification.
  • Freewheeling diode in DC-DC converters.
  • Reverse polarity protection circuits.
  • High frequency switching power supplies.
  • Battery charging and management systems.

SMD36LHE1-TP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum DC blocking voltage of the SMD36LHE1-TP?

The maximum DC blocking voltage is 60V.

What is the average forward current rating?

The average forward current is 3A.

What is the forward voltage drop at 3A?

The maximum forward voltage is 0.48V at 3A and 110°C lead temperature.

What is the reverse recovery time?

The maximum reverse recovery time is 35ns under test conditions IF=0.5A, IR=1.0A, Irr=0.25A.

What package does the SMD36LHE1-TP come in?

It is supplied in a surface mount SOD-123H package (supplier device package SOD-123HE1).

What is the operating temperature range?

The operating junction temperature range is -55°C to +150°C.

What is the peak forward surge current rating?

The peak forward surge current is 80A for an 8.3ms half-sine wave.
