| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| Thickness (Max) | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

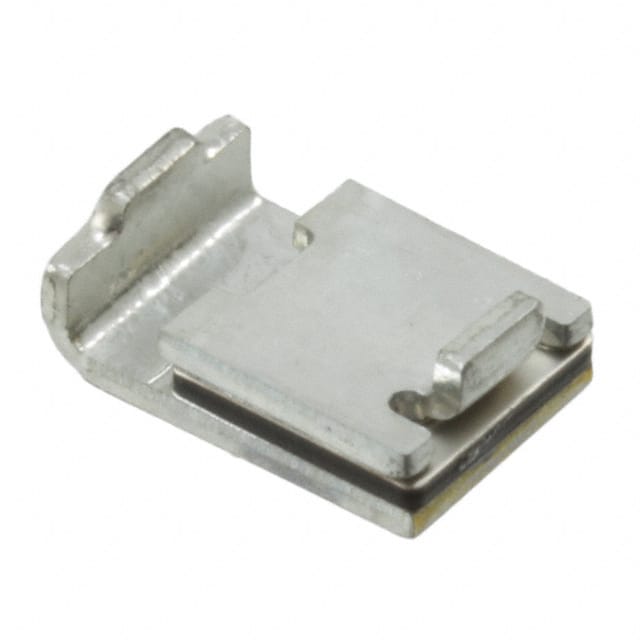

The Littelfuse SMD075F/60-2 is a polymeric PTC (Positive Temperature Coefficient) resettable fuse designed for overcurrent protection in electronic circuits. It has a maximum voltage rating of 60V and a hold current of 750 mA, making it suitable for a variety of low-power applications.
This device features a low initial resistance of 350 mΩ, which minimizes power loss during normal operation. Its time to trip is 300 ms, providing fast response to fault conditions. The operating temperature range spans from -40°C to 85°C, allowing use in diverse environments.
The SMD075F/60-2 is housed in a compact 2-SMD surface mount package with dimensions of 7.36mm length and 5.12mm width, and a maximum thickness of 3.18mm. It is designed for automated assembly and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.72 | $0.72 |
| 5+ | $0.60 | $0.60 |
| 10+ | $0.55 | $0.55 |
| 50+ | $0.46 | $0.46 |
| 100+ | $0.42 | $0.42 |
| 250+ | $0.38 | $0.38 |
| 500+ | $0.35 | $0.35 |
| 1,000+ | $0.32 | $0.32 |
| 2,000+ | $0.25 | $0.25 |
| 4,000+ | $0.23 | $0.23 |
| 6,000+ | $0.23 | $0.23 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage rating is 60V.
The hold current is 750 mA.
The initial resistance is 350 mΩ.
The time to trip is 300 ms.
It comes in a surface mount 2-SMD package.
The operating temperature range is -40°C to 85°C.
