| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,006 pcs
|
2006 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
486 pcs
|
486 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Current | |
| Halogen Free | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Voltage - Breakdown (Min) | |
| Voltage - Reverse Standoff (Typ) |

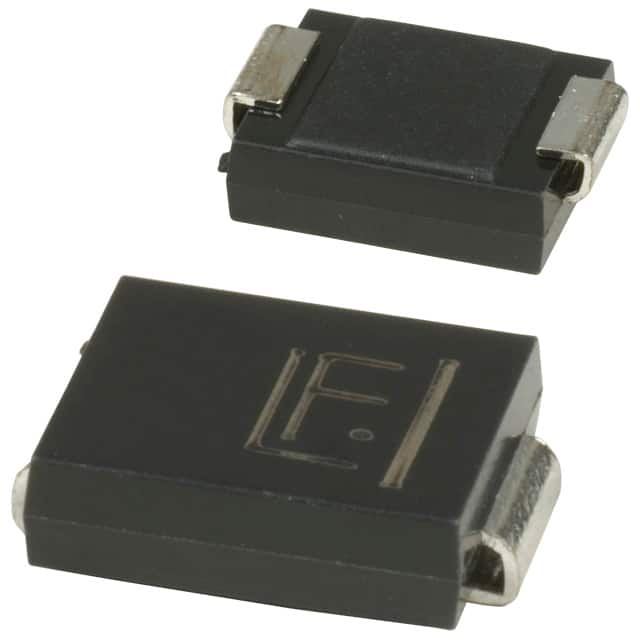

The SMCJ15CA is a bidirectional TVS diode from Littelfuse, designed to protect sensitive electronic equipment from voltage transients. It offers 1500W peak pulse power capability (10/1000µs waveform) with a reverse standoff voltage of 15V, minimum breakdown voltage of 16.7V, and maximum clamping voltage of 24.4V at 61.5A peak pulse current. The device features low incremental surge resistance, fast response time (<1ps), and typical leakage current less than 1µA for VBR>12V. It is suitable for general purpose applications including I/O interfaces, VCC bus, and data lines in telecom, computer, industrial, and consumer electronics. The SMCJ15CA is surface mounted in a DO-214AB (SMC) package and operates over a temperature range of -55°C to 150°C. It is halogen free and RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.97 | $0.97 |
| 10+ | $0.61 | $0.61 |
| 100+ | $0.39 | $0.39 |
| 500+ | $0.30 | $0.30 |
| 1,000+ | $0.27 | $0.27 |
| 3,000+ | $0.20 | $0.20 |
| 6,000+ | $0.18 | $0.18 |
| 9,000+ | $0.17 | $0.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 15V.
The minimum breakdown voltage is 16.7V.
The maximum clamping voltage is 24.4V at 61.5A peak pulse current.
The peak pulse current is 61.5A for a 10/1000µs waveform.
It is available in a DO-214AB (SMC) surface mount package.
The peak pulse power is 1500W for a 10/1000µs waveform.
Yes, it is a bidirectional TVS diode with 1 channel.
