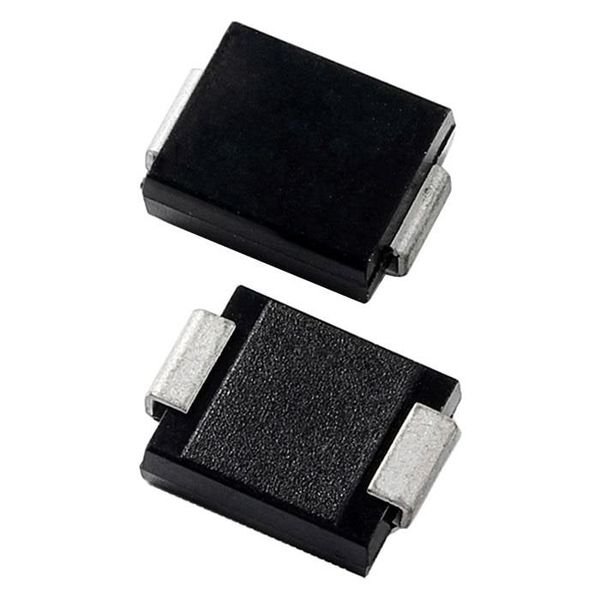

SMCJ13A The ON Semiconductor SMCJ13A is a TVS Diode designed for transient voltage suppression. It features a 13V reverse stand-off voltage and a 1.5kW peak pulse power rating.
Mfr Part #:

SMCJ13A

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor SMCJ13A is a TVS Diode designed for transient voltage suppression. It features a 13V reverse stand-off voltage and a 1.5kW peak pulse power rating.
✓ Total Stock: 17,100 pcs

SMCJ13A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
17,100 pcs
On Request
17100 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMCJ13A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Industrial Grade
Lead Style
Mounting Type
Operating Temperature Range
Package / Case
Peak Forward Surge Current
Storage Temperature
Tape & Reel
View Similar Products (0)

SMCJ13A Description

Short technical summary and product information.

The SMCJ13A from ON Semiconductor is a Transient Voltage Suppressor (TVS) diode housed in a surface-mount SMC package. This component is designed to protect sensitive electronic circuits from voltage transients, such as those caused by electrostatic discharge (ESD) and lightning surges.



Key electrical characteristics include a reverse stand-off voltage of 13V, a breakdown voltage of 14.4V, and a maximum clamping voltage of 21.5V. It offers a peak pulse power dissipation of 1.5kW (10/1000µs) and a peak pulse current of 69.8A. The operating and storage temperature range is from -55°C to +150°C.



This TVS diode is suitable for applications requiring robust protection against voltage spikes. Its surface-mount SMC package facilitates integration into compact electronic designs using standard pick-and-place equipment. The device is compliant with RoHS 3 standards.

SMCJ13A Quick Information

Product Type: TVS Diode
Series: SMCJ
Canonical Name: SMCJ13A Transient Voltage Suppressor Diode
Subcategory: Transient Voltage Suppressor

SMCJ13A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMCJ13A Features

  • 13V reverse stand-off voltage.
  • 14.4V breakdown voltage.
  • 1.5kW peak pulse power rating.
  • Surface mount SMC package.
  • Wide operating temperature range.

SMCJ13A Applications

  • Provides ESD protection.
  • Protects against voltage transients.
  • Suitable for surge protection.
  • Used in electronic circuits.

SMCJ13A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the reverse standoff voltage of the SMCJ13A?

13V.

What is the breakdown voltage of the SMCJ13A?

14.4V.

What is the maximum clamping voltage of the SMCJ13A?

21.5V.

What is the peak pulse current rating of the SMCJ13A?

69.8A at 10/1000µs.

What package is the SMCJ13A available in?

SMC (DO-214AB) surface-mount package.

What is the operating temperature range of the SMCJ13A?

-55°C to +150°C.

What is the peak pulse power dissipation of the SMCJ13A?

1500W for 1ms pulse and 1.5kW for 10/1000µs.
