| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |

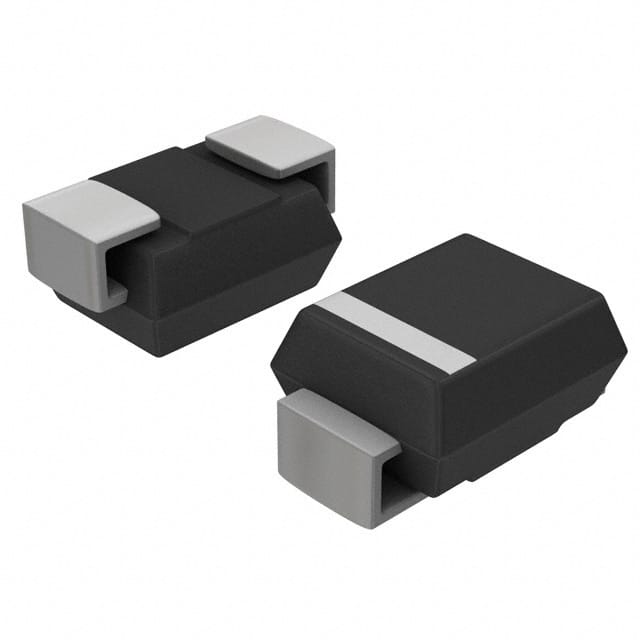

The SMC30J10CA is a bidirectional TVS diode from STMicroelectronics designed for general purpose transient voltage suppression. It offers a peak pulse power dissipation of 3000W, with a clamping voltage of 17V and a peak pulse current rating of 176A. The device is configured as a single bidirectional channel, making it suitable for applications requiring symmetrical overvoltage protection.
The TVS diode operates over a junction temperature range of -55°C to 175°C, ensuring reliable performance in harsh environments. It is housed in a DO-214AB (SMC) surface mount package, which facilitates compact PCB designs and automated assembly processes. The package is compatible with standard surface mount soldering techniques.
This component is intended for general purpose use where bidirectional transient protection is needed. It is not designed for power line protection, as indicated by the specifications. The SMC30J10CA is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited), allowing for flexible handling during manufacturing.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.28 | $1.28 |
| 10+ | $1.02 | $1.02 |
| 100+ | $0.72 | $0.72 |
| 500+ | $0.59 | $0.59 |
| 2,500+ | $0.48 | $0.48 |
| 25,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The clamping voltage is 17V.
The peak pulse current is 176A.
The device is available in a DO-214AB (SMC) surface mount package.
The peak pulse power is 3000W.
Yes, it has one bidirectional channel.
The junction temperature range is -55°C to 175°C.
Surface mount.
