| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,478 pcs
|
6478 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current | |
| Power Dissipation |

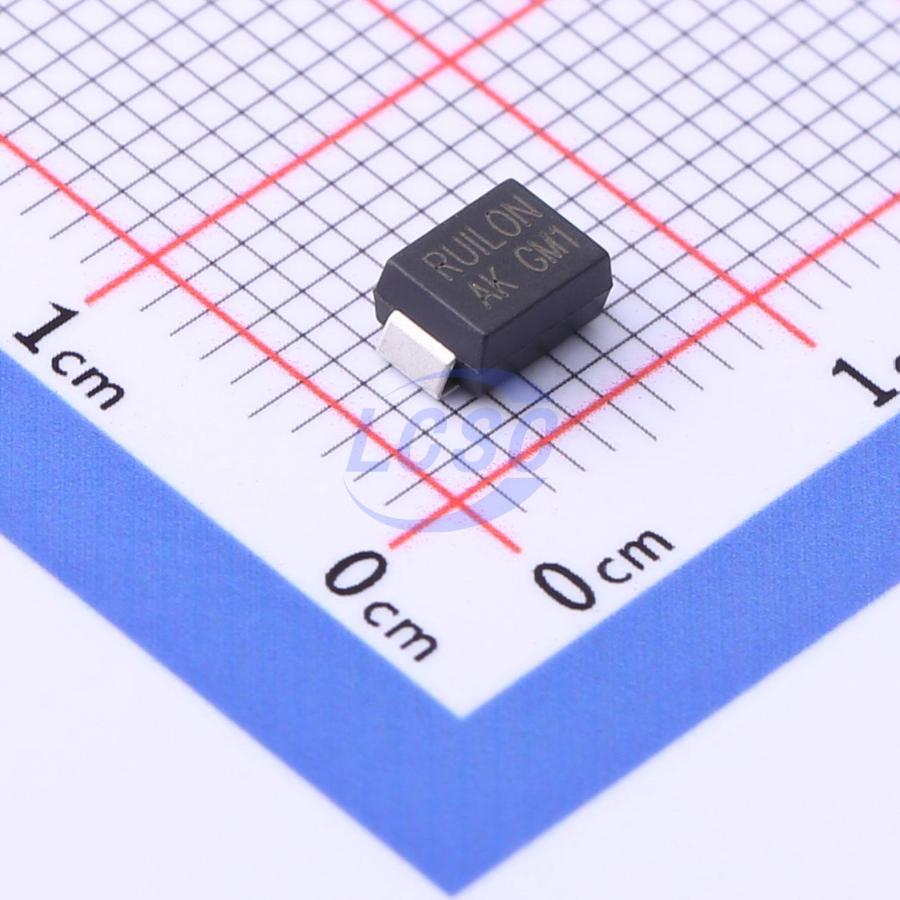

The RUILON/ SMBJ6.5CA is a Transient Voltage Suppressor (TVS) Diode from the SMBJ series, housed in a compact SMB package (DO-214AA). This device is engineered for surge and ESD protection applications, offering a significant power dissipation capability of 600 watts at 1ms pulse duration.
Key electrical characteristics include a peak forward surge current of 100 Amps (8.3 ms single half sine wave) and a steady-state power dissipation of 5.0 Watts at 75°C. The standoff voltage ranges from 5 to 495 volts, with a breakdown voltage up to 550 volts. Response times are exceptionally fast, less than 1.0 picosecond for unidirectional devices and less than 5.0 picoseconds for bidirectional devices.
Designed for surface mounting, the SMBJ6.5CA is suitable for applications requiring robust protection against transient voltage events. Its operating and storage temperature range is from -55°C to +150°C, ensuring reliability in various environmental conditions. The device conforms to JEDEC standards and is compatible with standard pick-and-place equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum peak pulse power dissipation is 600 Watts for a 1ms pulse.
The peak forward surge current is 100 Amps for an 8.3 ms single half sine wave.
The operating temperature range is -55 to +150 °C.
It is in an SMB package, also known as DO-214AA.
The standoff voltage ranges from 5 to 495 volts.
Response times are less than 1.0 picosecond for unidirectional devices and less than 5.0 picoseconds for bidirectional devices.
