| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,907 pcs
|
13907 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name |

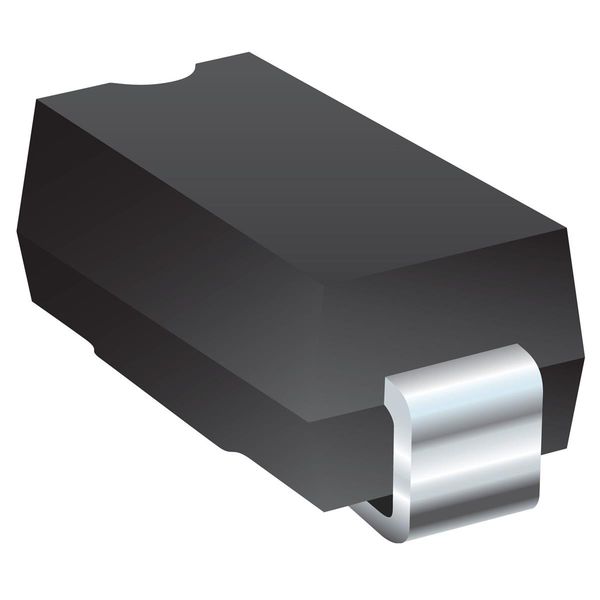

The SMBJ45A is a unidirectional Transient Voltage Suppressor (TVS) diode manufactured by MSKSEMI. It is designed for ESD protection applications.
Key electrical specifications include a 45V reverse standoff voltage and a minimum breakdown voltage of 50V. The maximum clamping voltage is 72.7V when subjected to a peak pulse current of 8.3A (10/1000 S waveform).
This TVS diode is housed in an SMB package, suitable for surface mounting. Its unidirectional polarity makes it effective for protecting sensitive electronic components from transient overvoltages and electrostatic discharges.
The SMBJ45A is part of the SMBJ series of TVS diodes, commonly used in various electronic circuits requiring robust protection against voltage spikes.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SMBJ45A has a reverse standoff voltage of 45V.
The minimum breakdown voltage for the SMBJ45A is 50V.
The maximum clamping voltage for the SMBJ45A at 8.3A is 72.7V.
The SMBJ45A has a peak pulse current rating of 8.3A for a 10/1000 S waveform.
The SMBJ45A TVS diode has unidirectional polarity.
The SMBJ45A TVS diode is supplied in an SMB package, also known as DO-214AA.
