| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
625 pcs
|
625 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Mounting Type | |
| Storage Temperature |
The Leshan SMBJ36CA is a bi-directional Transient Voltage Suppressor (TVS) diode designed for robust ESD protection. It operates with a reverse stand-off voltage of 36V and a breakdown voltage of 40V, providing effective protection against voltage transients.
This TVS diode offers a peak pulse power dissipation of 600W at a 10/1000µs waveform and a peak pulse current of 10.4A. The maximum clamping voltage is 28.1V. It is housed in a compact SMB (DO-214AA) surface-mount package, making it suitable for space-constrained applications.
The SMBJ36CA exhibits a low reverse leakage current of 1µA at its stand-off voltage. It is classified under RoHS3 compliance and has an MSL rating of 1, indicating unlimited shelf life under standard conditions. This component is designed to safeguard sensitive electronic circuits from electrostatic discharge events.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse stand-off voltage (Vrwm) for the SMBJ36CA is 36V.
The breakdown voltage for the SMBJ36CA is 40V.
The maximum clamping voltage for the SMBJ36CA is 28.1V.
The peak pulse power dissipation (Ppp@10/1000 S) for the SMBJ36CA is 600W.
The peak pulse current (Ipp@10/1000 S) for the SMBJ36CA is 10.4A.

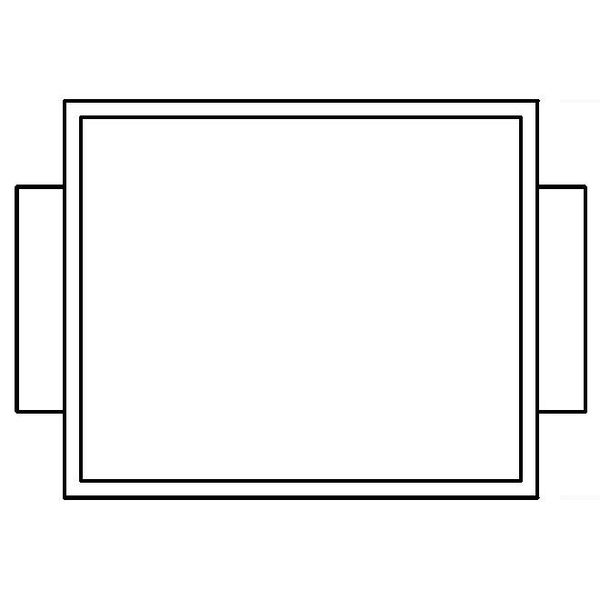

The SMBJ36CA is available in the SMB (DO-214AA) package.
