| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,400 pcs
|
3400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Voltage | |
| Lead Spacing | |
| Number of Channels | |
| Power Dissipation | |
| Termination Style | |
| Working Voltage |

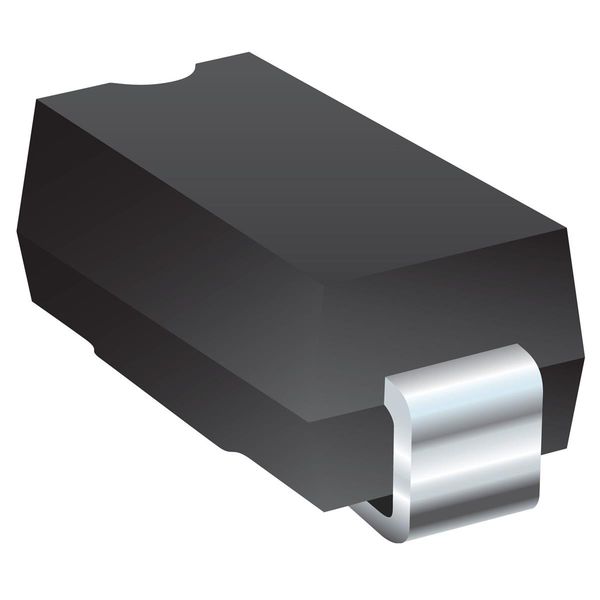

The SMBJ18CA is a bidirectional Transient Voltage Suppressor (TVS) diode manufactured by Taiwan Semiconductor. This component is designed for ESD protection and surge suppression applications.
Key electrical specifications include a working voltage of 18V, a breakdown voltage of 20V, and a clamping voltage of 29.2V. It can handle a peak pulse current of 21.5A and has a power dissipation rating of 600W. The diode operates across a wide temperature range from -65°C to +150°C.
This TVS diode is housed in a DO-214AA package and utilizes SMD/SMT termination style, making it suitable for surface-mount designs. The factory pack quantity is 3000 units. It is classified under the SMBJ series.
This part is suitable for applications requiring robust protection against transient voltage events and electrostatic discharge.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The working voltage is 18 V.
The breakdown voltage is 20 V.
The peak pulse current is 21.5 A.
The power dissipation is 600 W.
The operating temperature range is -65°C to +150°C.
The SMBJ18CA is supplied in a DO-214AA package.
