| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
233,520 pcs
|
233520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
36,030 pcs
|
36030 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Bidirectional Channels | |
| Current | |
| Halogen Free | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Polarity | |
| Power | |
| Power Dissipation (Continuous) | |
| Power Line Protection | |
| Reverse Standoff Voltage | |
| SVHC Present | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Finish | |
| Type | |
| Voltage |

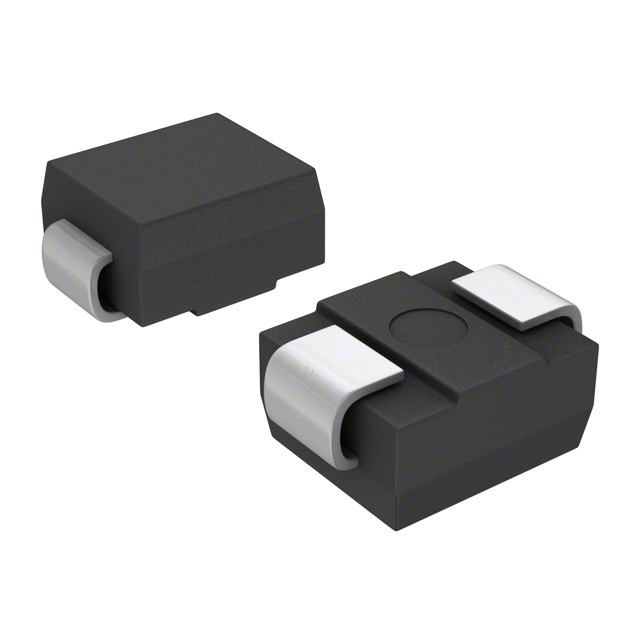

The SMBJ16CA-E3/52 is a bidirectional transient voltage suppressor (TVS) diode from Vishay's TRANSZORB series, designed to protect sensitive electronics from voltage transients. It features a reverse standoff voltage of 16V and a clamping voltage of 26V, with a peak pulse power rating of 600W (10/1000 μs waveform) and a peak pulse current of 23.1A. The device utilizes a glass passivated chip junction for reliable performance and offers very fast response time to transient events.
Typical applications include protection of ICs, MOSFETs, and signal lines in consumer, computer, industrial, and telecommunication equipment against inductive load switching and lightning-induced surges. The diode is housed in a low-profile DO-214AA (SMB) surface mount package with matte tin plated terminals, suitable for automated placement. It operates over a temperature range of -55°C to 150°C and meets MSL level 1 per J-STD-020.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.59 | $0.59 |
| 10+ | $0.37 | $0.37 |
| 100+ | $0.23 | $0.23 |
| 500+ | $0.13 | $0.13 |
| 750+ | $0.11 | $0.11 |
| 2,250+ | $0.10 | $0.10 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 16V.
The clamping voltage is 26V.
The peak pulse current is 23.1A for a 10/1000 μs waveform.
It comes in a DO-214AA (SMB) surface mount package.
It is a bidirectional TVS diode.
The peak pulse power is 600W for a 10/1000 μs waveform.
The operating temperature range is -55°C to 150°C.
