| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,415 pcs
|
2415 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Type | |
| Unidirectional Channels | |
| Voltage |

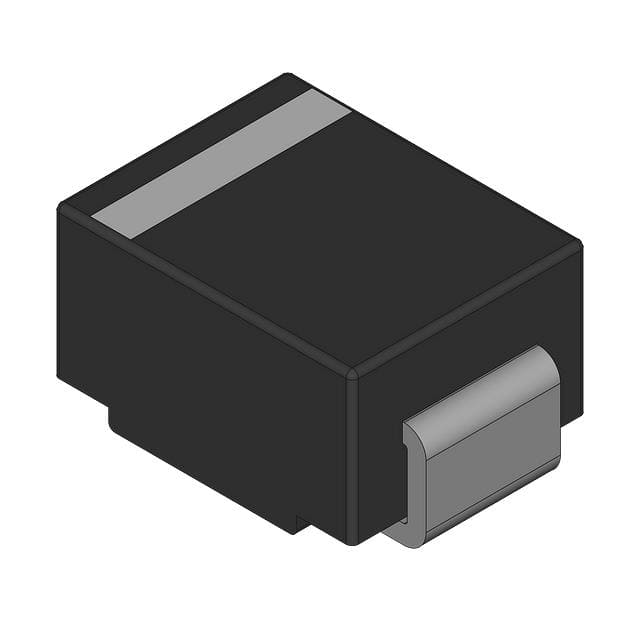

The SMBJ12A822 is a Zener type unidirectional transient voltage suppressor diode from ON Semiconductor. It features a breakdown voltage of 15.6V and a peak pulse current rating of 17.5A, with a peak pulse power dissipation of 600W. This component is designed for general purpose applications and does not include power line protection.
The device operates over a junction temperature range of -65°C to 150°C, making it suitable for a wide variety of environments. It is housed in a DO-214AA (SMB) surface mount package, which allows for efficient assembly in automated manufacturing processes.
As a unidirectional TVS diode, it provides protection against transient voltage events in a single polarity direction. It is commonly used in circuit protection applications where reliable clamping of voltage spikes is required.
| Qty | Low | High |
|---|---|---|
| 1,397+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The breakdown voltage is 15.6 V.
The peak pulse current rating is 17.5 A.
The package type is DO-214AA (SMB).
The peak pulse power dissipation is 600 W.
The operating temperature range is -65°C to 150°C (junction temperature).
The mounting type is surface mount.
Yes, it has 1 unidirectional channel.
