| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39,941 pcs
|
39941 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
128 pcs
|
128 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Current | |
| Forward Voltage (Typical @ 50A) | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current (8.3ms) | |
| Power | |
| Power Line Protection | |
| Steady State Power Dissipation | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Type | |
| Voltage | |
| Working Peak Reverse Voltage |

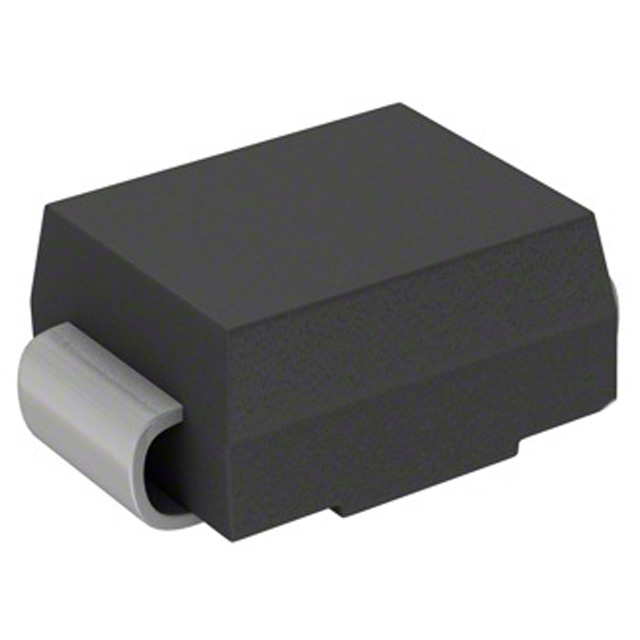

The SMBJ100CA is a bidirectional transient voltage suppression (TVS) diode manufactured by Littelfuse Inc. It is designed to protect sensitive electronic circuits from voltage transients induced by lightning, inductive load switching, and electrostatic discharge. The device features a working peak reverse voltage of 100 V and a clamping voltage of 162 V at a peak pulse current of 3.7 A. With a peak pulse power dissipation of 600 W, it provides robust surge protection for general purpose applications.
This TVS diode is housed in a surface mount DO-214AA (SMB) package, making it suitable for automated assembly processes. It operates over a wide temperature range of -65°C to 150°C, ensuring reliability in harsh environments. The bidirectional configuration allows protection for both positive and negative transients with a single component.
Typical applications include power supply protection, data line protection, and general circuit protection in consumer, industrial, and automotive electronics. The SMBJ100CA is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited), though these compliance statuses are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.58 | $0.58 |
| 10+ | $0.36 | $0.36 |
| 100+ | $0.23 | $0.23 |
| 500+ | $0.17 | $0.17 |
| 1,000+ | $0.15 | $0.15 |
| 3,000+ | $0.11 | $0.11 |
| 6,000+ | $0.10 | $0.10 |
| 9,000+ | $0.09 | $0.09 |
| 15,000+ | $0.09 | $0.09 |
| 21,000+ | $0.08 | $0.08 |
| 30,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The working peak reverse voltage (standoff) is 100 V.
The clamping voltage is 162 V.
The peak pulse current (IPP) is 3.7 A.
It is available in a DO-214AA (SMB) surface mount package.
Yes, it has 1 bidirectional channel.
The operating temperature range is -65°C to 150°C.
The peak pulse power dissipation is 600 W.
