| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
484 pcs
|
484 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage |

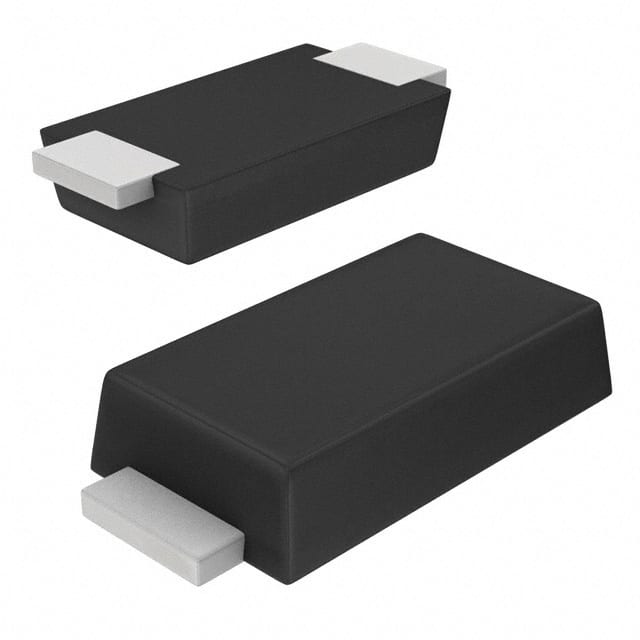

The SMA6L16A is a 600W unidirectional Zener TVS diode manufactured by Littelfuse Inc. It is designed to protect sensitive electronic circuits from voltage transients by clamping excessive voltages. With a reverse standoff voltage of 16V and a minimum breakdown voltage of 17.8V, it provides reliable overvoltage protection.
This TVS diode features a maximum clamping voltage of 26V at a peak pulse current of 23.1A (10/1000µs waveform). The device can handle 600W of peak pulse power, making it suitable for general purpose circuit protection applications. It is not intended for power line protection.
The SMA6L16A is housed in a DO-221AC (SMA Flat Leads) surface mount package, allowing for compact PCB designs. It operates over a wide temperature range from -65°C to 150°C (junction temperature). The component is RoHS3 compliant and has a moisture sensitivity level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.47 | $0.47 |
| 10+ | $0.31 | $0.31 |
| 100+ | $0.21 | $0.21 |
| 500+ | $0.16 | $0.16 |
| 1,000+ | $0.15 | $0.15 |
| 3,000+ | $0.11 | $0.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 V typical.
Minimum 17.8 V.
Maximum 26 V at peak pulse current.
23.1 A (10/1000 µs).
DO-221AC (SMA Flat Leads) surface mount package.
600 W (10/1000 µs).
Unidirectional (1 channel).
