| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
260,000 pcs
|
260000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Bidirectional Channels | |
| Clamping Voltage | |
| Current | |
| Mounting Type | |
| Number of Bidirectional Channels | |
| Operating Temperature | |
| Power | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |

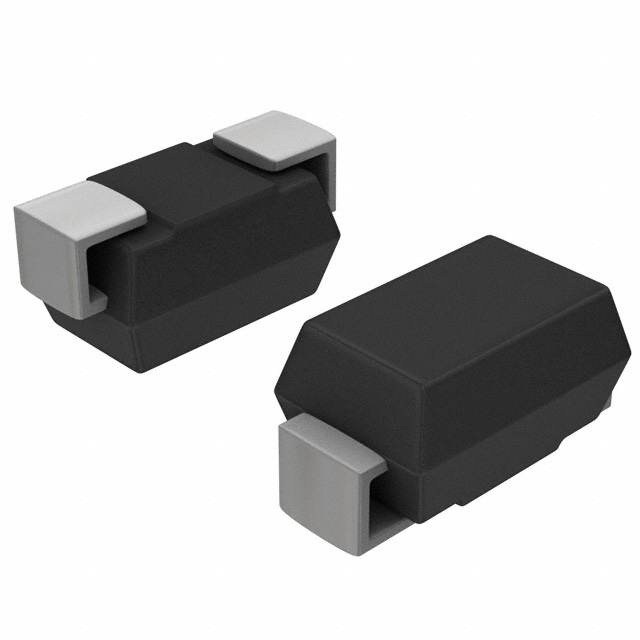

The SMA6J13CA is a bidirectional TVS (Transient Voltage Suppression) diode from Littelfuse designed for general purpose circuit protection. It offers a reverse standoff voltage of 13V and a clamping voltage of 21.5V, providing effective protection against voltage transients. With a peak pulse power rating of 600W and a peak pulse current capability of 29A (8/20µs waveform), it can handle high-energy surges.
Electrically, the device operates over a junction temperature range of -65°C to 150°C, ensuring reliability in demanding environments. It features a single bidirectional channel, making it suitable for protecting symmetrical signal lines and power rails.
Packaged in a surface mount DO-214AC (SMA) package, the SMA6J13CA is compatible with standard automated assembly processes. The package is compact and suitable for space-constrained designs. The device is RoHS3 compliant and has an MSL rating of 1 (unlimited), though these compliance claims are unverified.
Typical applications include general purpose circuit protection in consumer electronics, industrial controls, and telecommunications equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.61 | $0.61 |
| 10+ | $0.37 | $0.37 |
| 100+ | $0.24 | $0.24 |
| 500+ | $0.18 | $0.18 |
| 1,000+ | $0.16 | $0.16 |
| 2,000+ | $0.14 | $0.14 |
| 5,000+ | $0.11 | $0.11 |
| 10,000+ | $0.10 | $0.10 |
| 15,000+ | $0.09 | $0.09 |
| 25,000+ | $0.09 | $0.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
13V.
21.5V.
29A.
600W.
DO-214AC (SMA) surface mount.
Bidirectional.
-65°C to 150°C (junction).
