| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Function | |
| Interface | |
| Motor Type | |
| Mounting Type | |
| Operating Temperature | |
| Output Configuration | |
| Supplier Device Package | |
| Technology | |
| Voltage |

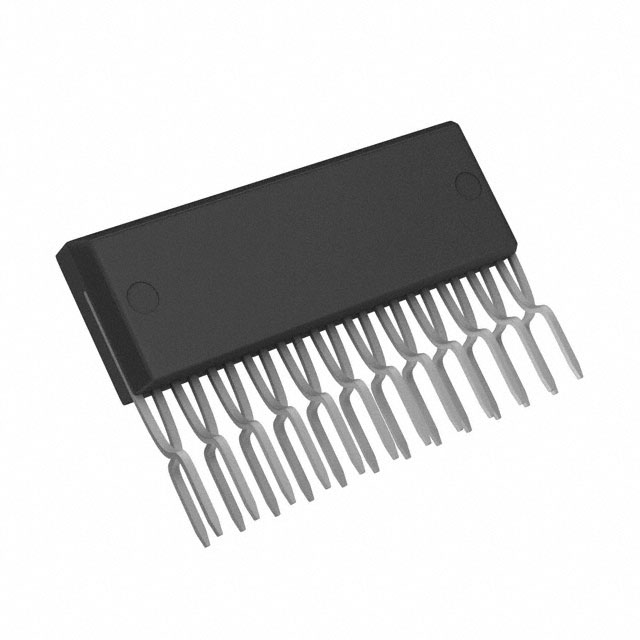

The Sanken SMA6822MH is an integrated circuit designed for motor control applications, specifically within the appliance sector. This device functions as a driver, providing a fully integrated control and power stage.
Key electrical specifications include a maximum voltage rating of 400V and a continuous current handling capability of 1.5A. The IC supports AC and synchronous motor types and features a half-bridge output configuration. Its technology is based on Power MOSFETs, and it interfaces via a parallel connection.
Designed for Through Hole mounting, the SMA6822MH comes in a 24-ZIP (SMA-24) package, also described as a 24-SSIP Formed Leads package. The operating temperature range for this component is from -20°C to 150°C (TJ). Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status, though these are not verified by manufacturer documentation.
This motor driver is suitable for various appliance designs requiring precise motor control and integrated power stages.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum voltage for the SMA6822MH is 400V.
The nominal current of the SMA6822MH is 1.5A.
The operating temperature range for the SMA6822MH is -20°C to 150°C (TJ).
The SMA6822MH is available in a 24-SSIP Formed Leads package.
The mounting type for the SMA6822MH is Through Hole.
The SMA6822MH can drive AC and Synchronous motor types.
The SMA6822MH functions as a Driver - Fully Integrated, Control and Power Stage.
