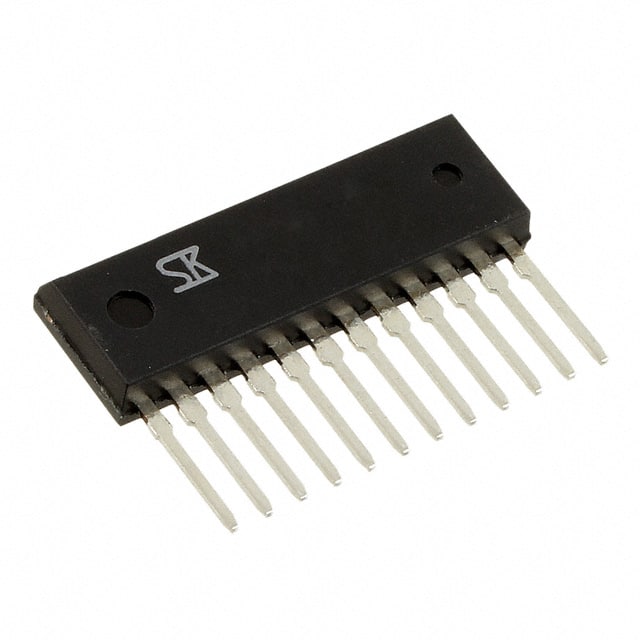

SMA6010 The Sanken SMA6010 is a Darlington transistor array featuring 3 NPN and 3 PNP transistors. It offers a 60V collector-emitter voltage and a 4A collector current.
Mfr Part #:

SMA6010

Available from 1 distributors
Mfr Name: Sanken
Sanken
The Sanken SMA6010 is a Darlington transistor array featuring 3 NPN and 3 PNP transistors. It offers a 60V collector-emitter voltage and a 4A collector current.
✓ Total Stock: 12,773 pcs
$ Price Range: $0.99

SMA6010 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
12,773 pcs
On Request
12773 pcs On Request 1 On Request On Request 04+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMA6010 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Frequency
Mounting Type
Operating Temperature
Power
Storage Temperature
Supplier Device Package
Thermal Resistance
Transistor Type
Vce Saturation (Max) @ Ib, Ic
Voltage
View Similar Products (0)

SMA6010 Description

Short technical summary and product information.

The Sanken SMA6010 is a Darlington transistor array designed for 3-phase motor drive applications. It integrates 3 NPN and 3 PNP transistors within a single package, simplifying complex circuit designs.



This array boasts a collector-emitter voltage (VCEO) of 60V and a continuous collector current (IC) of up to 4A. Its typical DC current gain (hFE) is 5000 at 3A and 4V. The transition frequency (fT) is 75MHz, making it suitable for a range of switching applications.



The SMA6010 is housed in a 12-SIP (Single In-line Package) with through-hole mounting. It operates within a junction temperature range of -40°C to 150°C, with a maximum power dissipation of 4W at 25°C ambient temperature or 20W at 25°C case temperature.



This component is RoHS3 compliant and has an MSL 1 rating, indicating unlimited moisture sensitivity. Its robust design and integrated functionality make it a reliable choice for power management and control circuits.

SMA6010 Quick Information

Product Type: Darlington Transistor Array
Series: SMA60
Canonical Name: Sanken SMA6010 Darlington Transistor Array
Subcategory: Transistors

SMA6010 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMA6010 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMA6010 Features

  • 3 NPN and 3 PNP Darlington transistors.
  • 60V collector-emitter voltage rating.
  • 4A continuous collector current.
  • 75MHz transition frequency.
  • 12-SIP through-hole package.

SMA6010 Applications

  • Ideal for 3-phase motor driver circuits.
  • Suitable for bridge inverter topologies.
  • Used in power switching applications.
  • Can drive inductive loads like relays.

SMA6010 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the collector-emitter voltage rating of the SMA6010?

The minimum collector-emitter voltage is 60V at IC=10mA.

What is the package type of the SMA6010?

The package is a 12-SIP (12-pin single in-line package) for through-hole mounting.

What is the maximum junction temperature of the SMA6010?

The maximum junction temperature is 150°C.

What is the maximum collector current of the SMA6010?

The maximum continuous collector current is 4A, and the peak current (ICP) is 6A.

What is the DC current gain (hFE) of the SMA6010?

At VCE=4V and IC=3A, the hFE ranges from 2000 minimum to 12000 maximum, with a typical value of 5000.

What is the transition frequency of the SMA6010?

The typical transition frequency is 75MHz for the NPN section (VCE=12V, IE=-0.1A) and 200MHz for the PNP section (VCE=-12V, IE=0.2A).
