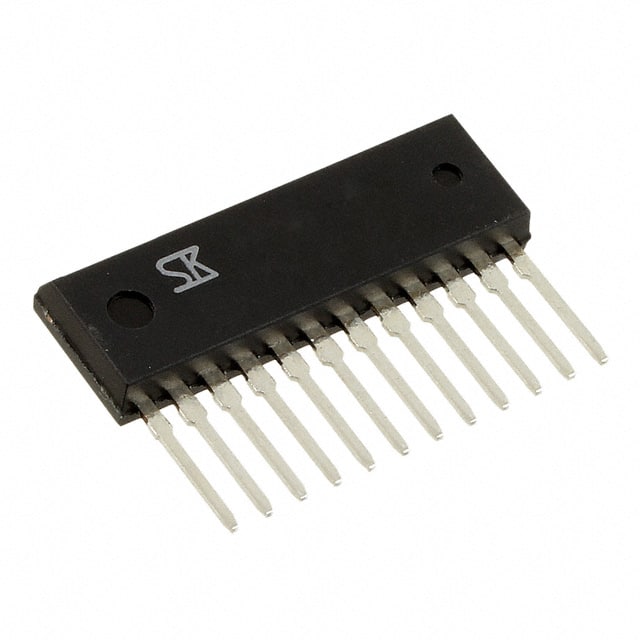

SMA5125 The Sanken SMA5125 is a 60V, 10A MOSFET array with 3 N-channel and 3 P-channel transistors. It is designed for 3-phase bridge applications.
Mfr Part #:

SMA5125

Available from 1 distributors
Mfr Name: Sanken
Sanken
The Sanken SMA5125 is a 60V, 10A MOSFET array with 3 N-channel and 3 P-channel transistors. It is designed for 3-phase bridge applications.
✓ Total Stock: 1,000 pcs
$ Price Range: $0.99

SMA5125 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SMA5125 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Drain to Source Voltage (Vdss)
Input Capacitance (Ciss) (Max) @ Vds
Mounting Type
Operating Temperature
Power
Rds On (Max) @ Id, Vgs
Storage Temperature
Supplier Device Package
Technology
Vgs(th) (Max) @ Id
View Similar Products (0)

SMA5125 Description

Short technical summary and product information.

The Sanken SMA5125 is a versatile MOSFET array designed for 3-phase motor drive applications. It integrates three N-channel and three P-channel MOSFETs within a single 12-SIP package, offering a compact solution for complex power circuitry.



This array features a maximum drain-source voltage (Vdss) of 60V and a continuous drain current (Id) of 10A. The on-resistance (Rds(on)) is specified at a maximum of 140mOhm at an ID of 5A and VGS of 4V. The device operates at a maximum junction temperature of 150°C and has a power dissipation rating of 4W without a heatsink, or 30W with an infinite heatsink.



Designed for through-hole mounting, the SMA5125 is suitable for applications requiring robust power switching capabilities. Its configuration as a 3-phase bridge makes it ideal for motor control and power inverter circuits. The device also includes typical capacitance values such as Ciss of 460pF at 10V.

SMA5125 Quick Information

Product Type: MOSFET Array
Canonical Name: Sanken SMA5125 N-Channel and P-Channel MOSFET Array
Subcategory: MOSFET Arrays

SMA5125 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SMA5125 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SMA5125 Features

  • 60V drain-source voltage rating.
  • 10A continuous drain current.
  • 3 N-channel and 3 P-channel MOSFETs.
  • 140mOhm maximum Rds(on).
  • 12-SIP through-hole package.

SMA5125 Applications

  • Used in 3-phase motor drive circuits.
  • Ideal for power inverter stages.
  • Suitable for DC-DC converter designs.
  • Applicable in automotive power systems.

SMA5125 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum drain-to-source voltage of the SMA5125?

60V.

What is the continuous drain current rating?

10A.

What package type is the SMA5125 available in?

12-SIP through-hole package.

What is the operating temperature range?

Maximum junction temperature is 150°C; storage temperature range is -40°C to +150°C.

What is the on-resistance (Rds(on))?

140 mOhm maximum at ID=5A, VGS=4V.

What is the configuration of the MOSFET array?

3 N-channel and 3 P-channel in a 3-phase bridge configuration.

What is the gate threshold voltage?

Typically 1.0V to 2.0V at VDS=10V, ID=250µA.
