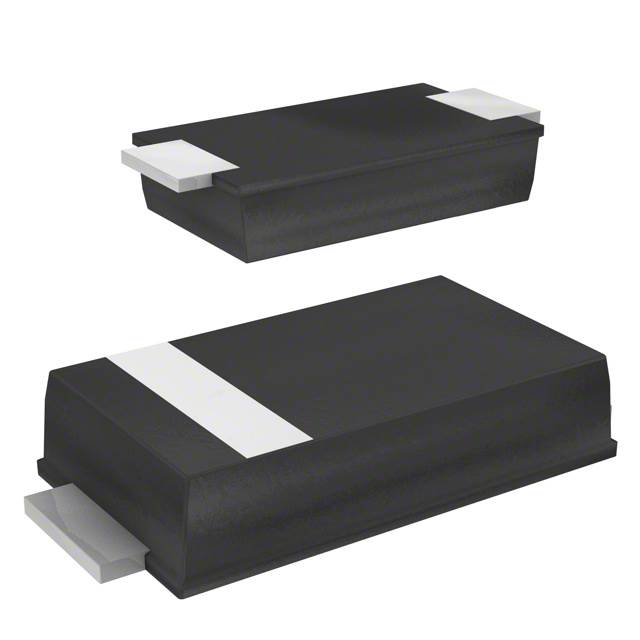

The SMA4F100A is a unidirectional transient voltage suppression (TVS) diode manufactured by STMicroelectronics. It is designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. The device features a stand-off voltage of 100 V and a breakdown voltage of 11.1 V at 10 mA.
Key electrical specifications include a peak pulse power dissipation of 400 W for a 10/1000 µs pulse and 2.5 kW for an 8/20 µs pulse. The clamping voltage is 16.2 V at 10/1000 µs, with a peak pulse current of 24.7 A for the same pulse condition. The device also offers ESD protection up to 25 kV (contact) and 30 kV (air) per IEC 61000-4-2.
The SMA4F100A is housed in a surface-mount DO-221AC (SMA Flat Leads) package, suitable for automated assembly. It has an operating junction temperature range of -55°C to 175°C and features matte tin plating on its leads.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The stand-off voltage range is 5 V to 188 V, with a nominal stand-off voltage of 100 V for this specific variant.
The minimum breakdown voltage is 11.1 V at 10 mA.
The maximum clamping voltage is 16.2 V at 10/1000 µs.
The maximum peak pulse current is 24.7 A for a 10/1000 µs pulse and 100 A for an 8/20 µs pulse.
The SMA4F100A is available in a DO-221AC (SMA Flat Leads) surface-mount package.
The operating junction temperature range is -55°C to 175°C.
The SMA4F100A provides ESD protection up to 25 kV contact discharge and 30 kV air discharge per IEC 61000-4-2.
