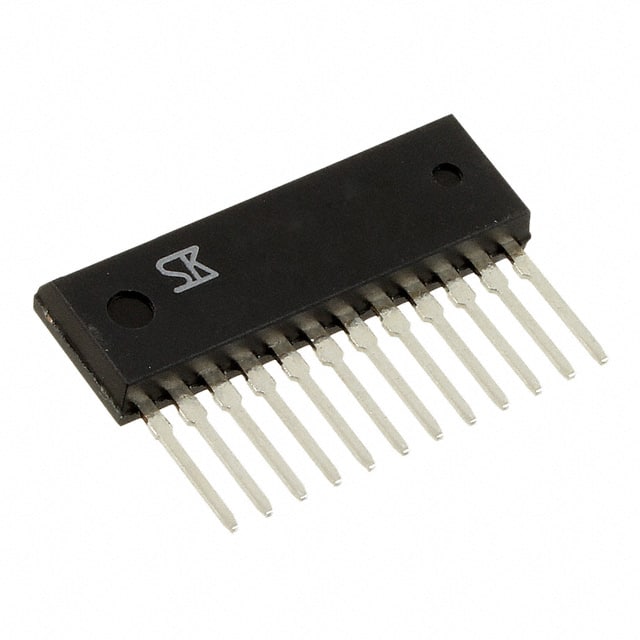

The Sanken SMA4030 is a quad NPN Darlington transistor array designed for general-purpose applications. It features a high collector-emitter voltage rating of 100V and can handle a continuous collector current of up to 3A.
Key electrical characteristics include a DC current gain (hFE) ranging from 2000 to 15000 at 1.5A and 4V, and a transition frequency (fT) of 40MHz. The collector-emitter saturation voltage (Vce(sat)) is a maximum of 1.5V at 3mA base current and 1.5A collector current.
This transistor array is housed in a 12-SIP (Single In-line Package) and is designed for through-hole mounting. It has an operating temperature range of -40°C to 150°C and a power dissipation of 4W at 25°C with an infinite heatsink.
The SMA4030 is suitable for various switching and amplification applications where high gain and moderate power handling are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum collector-emitter voltage (Vceo) is 100V.
The maximum continuous collector current (Ic) is 3A.
The hFE ranges from 2000 to 15000 at VCE=4V and IC=1.5A.
The SMA4030 is available in a 12-SIP through-hole package.
Maximum power dissipation is 4W at 25°C ambient with an infinite heatsink.
The junction temperature range is -40°C to +150°C.
