| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
104 pcs
|
104 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Center Contact Material | |
| Center Contact Plating | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Orientation | |
| Outer Contact Plating | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

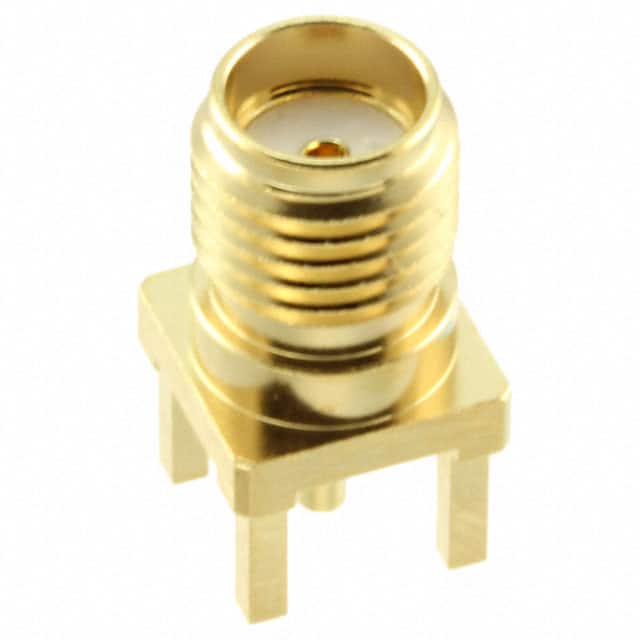

The SMA-J-P-H-ST-TH1 is a straight SMA jack (female socket) coaxial connector designed for PCB mounting. It features a 50 Ohm impedance and is rated for operation up to 20 GHz, making it suitable for high-frequency RF applications. The connector uses a threaded fastening type for secure mating and offers through hole solder termination for both the center contact and shield. The center contact is made of beryllium copper with 30 µ" (0.76 µm) gold plating, and the outer contact has 3 µ" (0.08 µm) gold plating. The housing is gold colored. This single-port connector is part of Samtec's SMA series and is designed for straight orientation. It is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.91 | $2.91 |
| 10+ | $2.83 | $2.83 |
| 50+ | $2.69 | $2.69 |
| 100+ | $2.52 | $2.52 |
| 300+ | $2.49 | $2.49 |
| 500+ | $2.23 | $2.23 |
| 1,000+ | $2.09 | $2.09 |
| 2,500+ | $1.98 | $1.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohm.
20 GHz.
Through hole.
SMA jack, female socket.
Solder for both contact and shield.
Threaded.
Beryllium copper with 30 µ" (0.76 µm) gold plating.
