| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,000 pcs
|
18000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance |

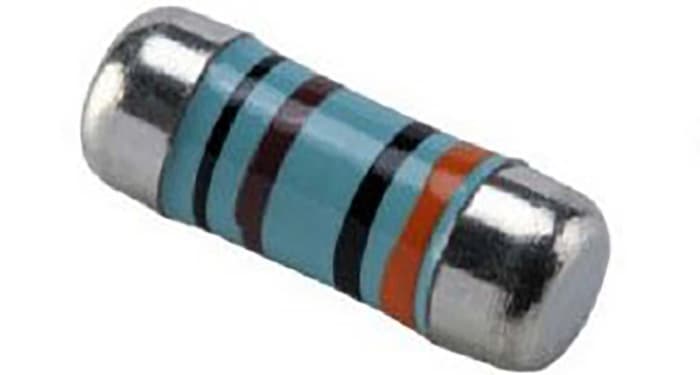

This TE Connectivity SMA-A0102FTDL330K is a high-quality thin film surface mount resistor designed for demanding applications. It offers a precise resistance value of 330kΩ with a tight tolerance of ±1%, ensuring accuracy in circuit performance.
The resistor is rated for a power dissipation of 0.3W and features a temperature coefficient of ±50ppm/°C, making it suitable for operation across a wide temperature range from -55°C to +155°C. Its MELF 0102 package provides a compact form factor with dimensions of 0.043" Dia x 0.087" L (1.10mm x 2.20mm).
Designed with automotive applications in mind, this component meets the AEC-Q200 standard, indicating its reliability and suitability for use in harsh environments. The metal film construction contributes to its stability and performance characteristics. It has 2 terminations and is classified under the Chip Resistor - Surface Mount category.
This part is compliant with RoHS3 standards and has an MSL rating of 1, indicating unlimited shelf life under normal conditions. Its REACH status is unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 330kΩ.
The tolerance is ±1%.
The power rating is 0.3W.
The temperature coefficient is ±50ppm/°C.
The operating temperature range is -55°C to +155°C.
It comes in a MELF 0102 package.
Yes, it features Automotive AEC-Q200 compliance.
