| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
750 pcs
|
750 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Bidirectional Channels | |
| Breakdown Voltage | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Package Dimensions | |
| Polarity | |
| Power | |
| Power Dissipation | |
| Power Line Protection | |
| Prop 65 | |
| Reverse Leakage Current | |
| Storage Temperature | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Working Peak Reverse Voltage |

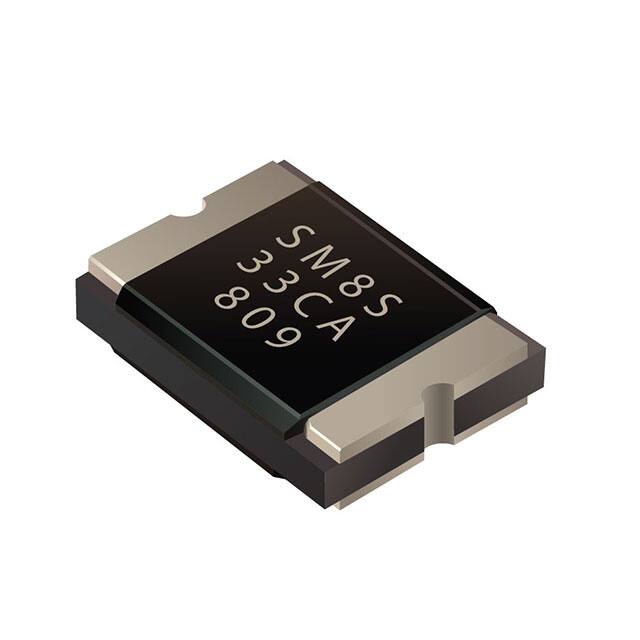

The Bourns SM8SF36CA-Q is a bidirectional transient voltage suppressor (TVS) diode from the SM8SF-Q series, designed to protect sensitive electronics from overvoltage transients. It offers a peak pulse power dissipation of 7000W (10/1000µs) and a maximum clamping voltage of 58.1V at 120A peak pulse current. The device features a working peak reverse voltage of 36V and a breakdown voltage range of 40.0V to 44.2V at 5mA. Reverse leakage current is limited to 10µA at 36V.
This TVS diode is AEC-Q101 qualified and manufactured in an IATF 16949:2016 certified facility, making it suitable for automotive applications. It meets ISO7637-2 and ISO16750-2 surge specifications (varies by test condition). The device operates over a wide temperature range of -55°C to 175°C and can dissipate up to 5W of power with infinite heatsink.
The SM8SF36CA-Q is housed in a low-profile 2-LDFN surface mount package measuring 8.1mm x 10.5mm x 1.3mm, facilitating compact PCB designs. It is RoHS3 compliant and suitable for high peak power and high temperature applications, including clamping diodes, load switching, and lighting circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.67 | $3.67 |
| 10+ | $2.40 | $2.40 |
| 100+ | $1.80 | $1.80 |
| 500+ | $1.40 | $1.40 |
| 750+ | $1.25 | $1.25 |
| 2,250+ | $1.19 | $1.19 |
| 9,750+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
36V.
40.0V to 44.2V at 5mA.
58.1V.
120A.
2-LDFN surface mount package, 8.1mm x 10.5mm.
Yes, bidirectional.
-55°C to 175°C.
