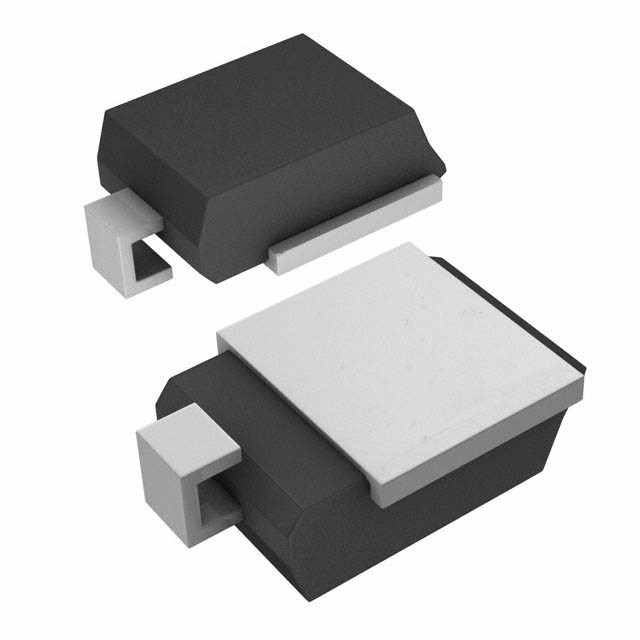

SM8S36A SM8S36A is a 6.6kW unidirectional TVS diode with 36V reverse stand-off voltage and 58.1V clamping voltage in a DO-218AB surface mount package.
Mfr Part #:

SM8S36A

Available from 1 distributors
Mfr Name: SMC Diode Solutions
SMC Diode Solutions
SM8S36A is a 6.6kW unidirectional TVS diode with 36V reverse stand-off voltage and 58.1V clamping voltage in a DO-218AB surface mount package.
✓ Total Stock: 6,898 pcs
$ Price Range: $1.40 - $4.42

SM8S36A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,898 pcs
On Request
6898 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SM8S36A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Current
Mounting Type
Operating Temperature
Power
Power Dissipation
Power Line Protection
Supplier Device Package
Tape & Reel
Termination Finish
Type
Unidirectional Channels
Voltage
View Similar Products (0)

SM8S36A Description

Short technical summary and product information.

The SM8S36A is a unidirectional transient voltage suppressor diode designed for automotive and high-reliability applications. It features a peak pulse power dissipation of 6600W (6.6kW) under a 10/1000µs waveform, with a clamping voltage of 58.1V at a peak pulse current of 114A. The device operates over a junction temperature range of -55°C to 175°C, making it suitable for harsh environments.



This TVS diode is housed in a DO-218AB surface mount package with matte tin plated terminals. It is RoHS3 compliant and AEC-Q101 qualified, meeting automotive reliability standards. The part is unidirectional with one channel and does not provide power line protection.



Typical thermal resistance from junction to case is 0.9°C/W, and maximum power dissipation on an infinite heat sink at 25°C case temperature is 8.0W. The device is supplied in tape and reel packaging with a standard quantity of 750 pieces per reel.

SM8S36A Quick Information

Product Type: TVS Diode
Series: SM8S36A
Canonical Name: SM8S36A TVS Diode
Subcategory: TVS Diodes

SM8S36A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

SM8S36A Estimated Pricing

Qty Low High
1+ $4.42 $4.42
10+ $2.91 $2.91
100+ $2.05 $2.05
750+ $1.61 $1.61
1,500+ $1.50 $1.50
2,250+ $1.45 $1.45
3,750+ $1.40 $1.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

SM8S36A Features

  • 6600W peak pulse power dissipation.
  • 58.1V clamping voltage at 114A.
  • Unidirectional TVS diode, single channel.
  • DO-218AB surface mount package.
  • AEC-Q101 qualified for automotive use.

SM8S36A Applications

  • Automotive electronic control unit protection.
  • Transient voltage suppression in power lines.
  • High-reliability industrial equipment protection.
  • Surge protection for DC power systems.

SM8S36A FAQs

5 frequently asked questions generated from this part’s specifications.
What is the peak pulse power of the SM8S36A?

The SM8S36A has a peak pulse power dissipation of 6600W (6.6kW) under a 10/1000µs waveform.

What is the clamping voltage of the SM8S36A?

The clamping voltage is 58.1V maximum at a peak pulse current of 114A under a 10/1000µs waveform.

What package does the SM8S36A come in?

The SM8S36A is available in a DO-218AB surface mount package.

Is the SM8S36A RoHS compliant?

Yes, the SM8S36A is RoHS3 compliant as stated in the datasheet.

What is the operating temperature range of the SM8S36A?

The operating junction temperature range is -55°C to 175°C.
