| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
111,336 pcs
|
111336 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
19,500 pcs
|
19500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
3,480 pcs
|
3480 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q101 | |
| Applications | |
| Automotive Grade | |
| Breakdown Voltage (Vbr) | |
| Current | |
| MSL (Moisture Sensitivity Level) | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Peak Forward Surge Current (Ifsm) | |
| Peak Pulse Power (Maximum @ 10/10000 μs waveform) | |
| Polarity | |
| Power | |
| Power Dissipation (PD) | |
| Power Line Protection | |
| Standoff Voltage (VWM) | |
| Storage Temperature Range | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| UL Flammability | |
| Unidirectional Channels | |
| Voltage |

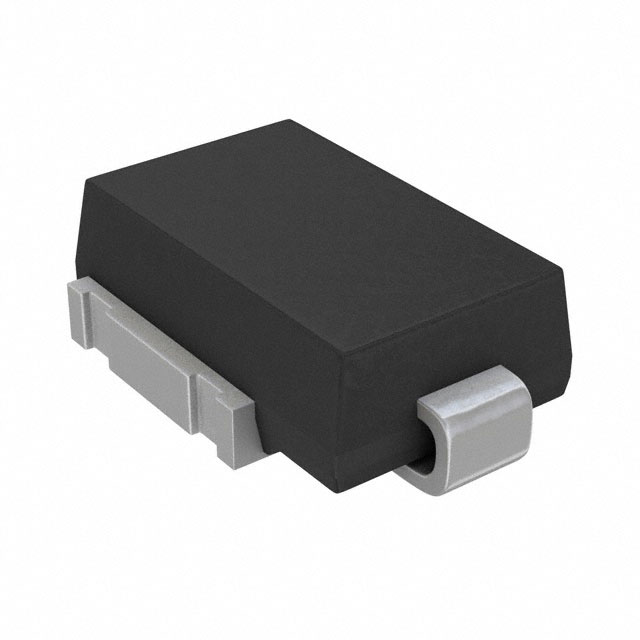

The SM8S33ATHE3/I is a unidirectional transient voltage suppressor (TVS) diode from Vishay General Semiconductor, designed for protecting sensitive electronics from voltage transients. It is part of the SM8SxxAT series and is AEC-Q101 qualified for automotive applications.
With a standoff voltage of 33V and a breakdown voltage range of 36.8V to 40.8V, it clamps transients to a maximum of 53.3V at a peak pulse current of 124A (10/1000μs waveform). It can handle 6600W peak pulse power (10/1000μs) and 5200W (10/10000μs). The device also features a peak forward surge current of 700A (8.3ms) and a power dissipation of 8W on infinite heatsink.
The diode is housed in a DO-218AC surface-mount package with matte tin plated leads. It operates over a junction temperature range of -55°C to 175°C and meets MSL level 1. The molding compound is UL 94 V-0 rated.
Typical applications include automotive load dump protection, inductive load switching, and lighting surge protection. It is RoHS-compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.42 | $2.42 |
| 10+ | $1.96 | $1.96 |
| 100+ | $1.57 | $1.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
33V.
36.8V to 40.8V.
53.3V at 124A peak pulse current.
124A for 10/1000μs waveform.
DO-218AC surface mount package.
Yes, it is AEC-Q101 qualified for automotive applications.
-55°C to 175°C junction temperature.
