| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,500 pcs
|
4500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Duty Cycle | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Quiescent Current | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The SM72485SD/NOPB from Texas Instruments is a step-down switching regulator designed for efficient power conversion. It features a constant on-time (COT) control mode, enabling ultra-fast transient response and constant operating frequency across varying line voltage and load conditions.
This regulator supports an adjustable output voltage starting from 2.5V and can handle an input voltage range of 6V to 95V. It is capable of delivering up to 150mA of output current. Key electrical specifications include a switching frequency that can range from 50kHz to 1.1MHz and a typical quiescent current of 485µA.

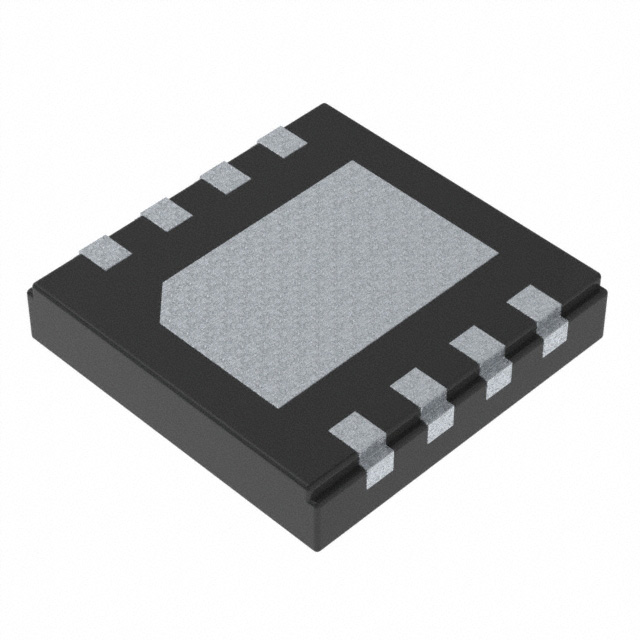

The device is housed in an 8-WSON (4x4) package and utilizes surface mount technology for integration into compact designs. The operating temperature range is -40°C to 125°C (TJ). It includes features such as an integrated 100V N-channel buck switch, internal start-up regulator, and requires no loop compensation.
Additional features include intelligent current limit and thermal shutdown for protection. The SM72485SD/NOPB is suitable for various power management applications requiring a reliable and efficient buck conversion solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.70 | $1.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is from 6 V to 95 V.
The maximum output current is 150 mA.
The output voltage is adjustable from 2.5 V.
The operating temperature range is -40°C to 125°C (TJ).
It is available in an 8-WSON (4x4) package.
The topology is Buck.
No, it does not have a synchronous rectifier.
