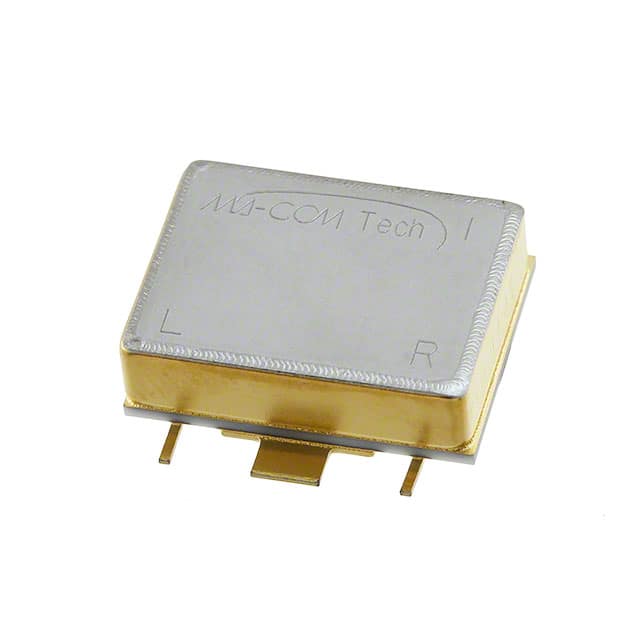

The MACOM Technology Solutions SM4T is a termination insensitive mixer designed for use in military, commercial, and test equipment applications. Its design utilizes Schottky bridge quad diodes, broadband ferrite baluns, and internal loads to provide excellent performance without degradation due to external VSWR mismatches.
Key electrical specifications include an RF and LO frequency range of 1 to 3400 MHz, and an IF range of 1 to 2000 MHz. The mixer features a nominal LO drive of +10 dBm, a typical high intercept of +18 dBm, and a typical 1 dB conversion compression of +6 dBm. Conversion loss is typically between 7.5 dB and 10.5 dB depending on the frequency range, with SSB noise figures typically between 8.0 dB and 11.0 dB.
This mixer is housed in a surface mount package and is RoHS compliant and 260°C reflow compatible. It operates within a temperature range of -54°C to +100°C. Environmental screening is available to MIL-STD-883, MIL-STD-202, or MIL-DTL-28837 upon consultation with the factory.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.77 | $5.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -54°C to +100°C.
The typical Input IP3 is +18 dBm.
The LO and RF frequency range is 1 to 3400 MHz.
The IF frequency range is 1 to 2000 MHz.
The SM4T mixer is a surface mount device.
Yes, the SM4T mixer is RoHS3 Compliant.
