| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Termination | |
| Current Rating | |
| Pin or Socket | |
| Tape & Reel | |
| Type | |
| Wire Gauge |

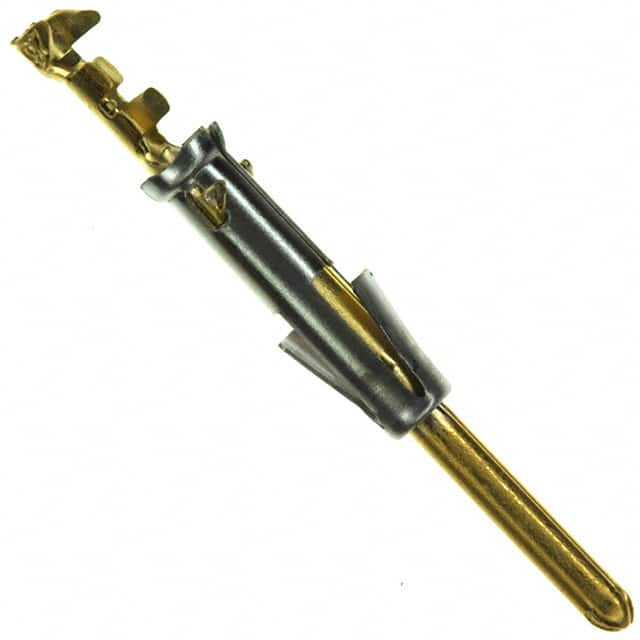

The SM24M-1S6 is a size 16 stamped and formed pin contact from the TRIM TRIO series by Souriau-Sunbank by Eaton. It is designed for use with 24-26 AWG wire and features a gold contact finish with a thickness of 0.75 µm over a copper alloy body. The contact uses a crimp termination and is supplied on tape and reel in quantities of 3000 pieces.
This contact is part of the SM/SC family and is suitable for high-volume applications. It offers a current rating of 13 A, a maximum contact resistance of 6 mΩ, and a minimum contact retention force of 65 N. The maximum insertion force is 3.5 N, and the minimum withdrawal force is 0.55 N.
The two-piece construction includes a stainless steel retaining spring that provides retention in the housing cavity and protects the contact body. The open barrel crimp design allows for reliable wire termination. These contacts are compatible with any TRIM TRIO size 16 connector position.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.07 | $2.07 |
| 10+ | $1.76 | $1.76 |
| 25+ | $1.58 | $1.58 |
| 100+ | $1.50 | $1.50 |
| 250+ | $1.41 | $1.41 |
| 500+ | $1.34 | $1.34 |
| 1,000+ | $1.25 | $1.25 |
| 3,000+ | $1.17 | $1.17 |
| 6,000+ | $1.12 | $1.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SM24M-1S6 is rated for 13 A.
It supports 24-26 AWG wire.
The maximum contact resistance is 6 mΩ.
The minimum contact retention force is 65 N.
Maximum insertion force is 3.5 N, minimum withdrawal force is 0.55 N.
It is supplied in tape and reel packaging with 3000 pieces per reel.
