| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
70 pcs
|
70 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Termination | |
| Current Rating | |
| Operating Voltage | |
| Pin or Socket | |
| Type | |
| Wire Gauge |

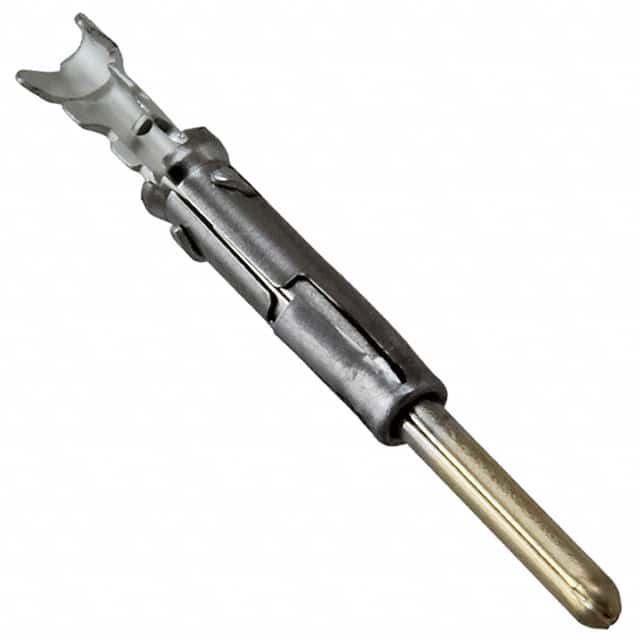

The SM20ML1S31 is a stamped and formed two-piece male crimp contact designed for use with Souriau-Sunbank TRIM TRIO connector systems. It accommodates 20 to 22 AWG wire with an insulation diameter range of 1.20 to 2.10 mm and requires a strip length of 4.0 mm. The contact is made of copper alloy with a gold flash over nickel finish, ensuring low and stable contact resistance.\n\nElectrical specifications include a nominal current rating of 13 A, maximum contact resistance of 6 mOhm, and operating voltage of 750 V RMS. Mechanical performance includes a maximum insertion force of 3.5 N, minimum withdrawal force of 0.55 N, and contact retention force of 65 N minimum within the housing.\n\nThe contact is supplied as loose pieces in plastic bags with a standard package quantity of 100 pieces. It uses crimp termination and is compatible with hand crimp tooling listed in the datasheet. This contact is suitable for signal and power interconnect applications in industrial, aerospace, and other harsh environment systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
| 10+ | $0.91 | $0.91 |
| 25+ | $0.88 | $0.88 |
| 100+ | $0.82 | $0.82 |
| 250+ | $0.75 | $0.75 |
| 500+ | $0.67 | $0.67 |
| 1,000+ | $0.61 | $0.61 |
| 2,000+ | $0.57 | $0.57 |
| 5,000+ | $0.56 | $0.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
13 A
750 V RMS
≤ 6 mOhm
20-22 AWG
3.5 N maximum
65 N minimum
Copper alloy with gold flash finish
