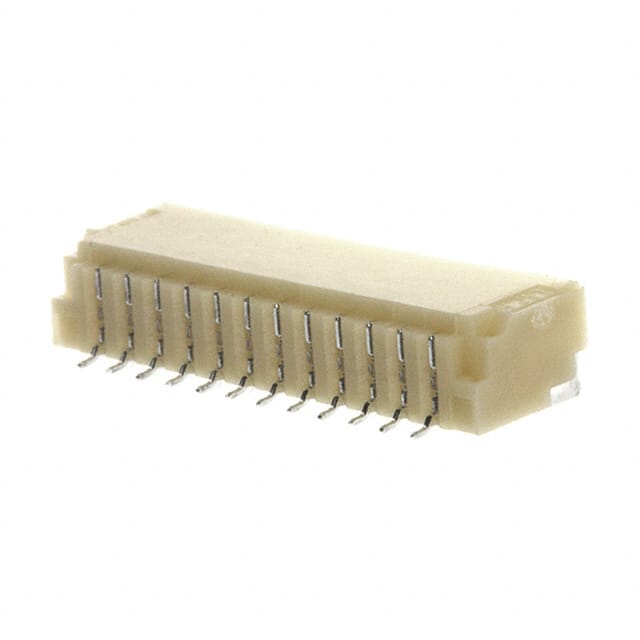

SM12B-SRSS-TB(LF)(SN) JST SH series 12-position 1.00mm pitch shrouded header with surface mount right angle termination. Rated 1A at 50V, with solder retention feature.
Mfr Part #:

SM12B-SRSS-TB(LF)(SN)

Available from 2 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST SH series 12-position 1.00mm pitch shrouded header with surface mount right angle termination. Rated 1A at 50V, with solder retention feature.
✓ Total Stock: 99 pcs

SM12B-SRSS-TB(LF)(SN) Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
85 pcs
On Request
85 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SM12B-SRSS-TB(LF)(SN) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Orientation
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
Withstanding Voltage
View Similar Products (0)

SM12B-SRSS-TB(LF)(SN) Description

Short technical summary and product information.

The JST SM12B-SRSS-TB(LF)(SN) is a 12-position header connector from the SH series, featuring a 1.00mm pitch and surface mount right angle orientation. This shrouded header (4-wall) provides secure mating for board-to-cable/wire connections. The contacts are made of copper alloy with tin finish, and the insulator is natural polyamide (PA) nylon rated UL94 V-0.



Electrical ratings include a current rating of 1A and voltage rating of 50V. Operating temperature range is -25°C to 85°C. The connector features solder retention for reliable mounting. Contact resistance is 20mΩ maximum initially and 30mΩ maximum after environmental tests, with insulation resistance of 1000MΩ minimum and withstanding voltage of 500V AC.



This connector is suitable for compact electronic devices where space is limited. The surface mount right angle design allows for low-profile assembly on PCBs. Solder retention keeps the connector in place during reflow processes.

SM12B-SRSS-TB(LF)(SN) Quick Information

Product Type: Header Connector
Series: SH
Canonical Name: JST SH Series 12-Position 1.00mm Pitch Shrouded Header, Surface Mount Right Angle, Tin Contacts
Subcategory: Shrouded Header

SM12B-SRSS-TB(LF)(SN) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

SM12B-SRSS-TB(LF)(SN) Features

  • 12 positions in single row with 1.00mm pitch.
  • Surface mount right angle orientation.
  • Shrouded 4-wall design for secure mating.
  • Tin-plated copper alloy contacts.
  • Solder retention feature for reliable mounting.

SM12B-SRSS-TB(LF)(SN) Applications

  • Ideal for compact board-to-cable connections.
  • Used in consumer electronics and small appliances.
  • Suitable for automotive interior lighting modules.

SM12B-SRSS-TB(LF)(SN) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the SM12B-SRSS-TB(LF)(SN) have?

12 positions.

What is the pitch of this connector?

1.00mm

What is the current rating?

1A

What is the voltage rating?

50V

What is the mounting type?

Surface mount, right angle

What is the operating temperature range?

-25°C to 85°C

Is this connector RoHS compliant?

RoHS3 compliant (unverified)
