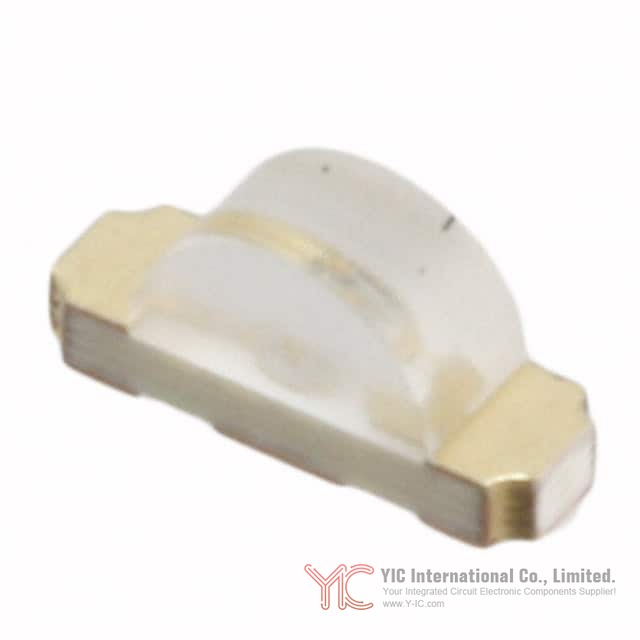

SM1204SPGC The Bivar Inc. SM1204SPGC is a green LED with a 3.3V forward voltage and 20mA current rating. It comes in a 1204 (3210 Metric) package for surface mounting.
Mfr Part #:

SM1204SPGC

Available from 1 distributors
Mfr Name: Bivar Inc.
Bivar Inc.
The Bivar Inc. SM1204SPGC is a green LED with a 3.3V forward voltage and 20mA current rating. It comes in a 1204 (3210 Metric) package for surface mounting.
✓ Total Stock: 2,570 pcs
$ Price Range: $0.06

SM1204SPGC Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,570 pcs
On Request
2570 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SM1204SPGC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Supplier Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

SM1204SPGC Description

Short technical summary and product information.

The Bivar Inc. SM1204SPGC is a discrete LED designed for indication purposes. It emits a green light with a typical forward voltage of 3.3V and a forward current of 20mA, providing a luminous intensity of 285mcd.



This LED features a clear, colorless lens with a rectangle shape and a domed top, measuring 2.00mm x 1.00mm. The overall component size is 3.20mm L x 1.00mm W, with a maximum height of 1.00mm. Its viewing angle is typically 110 degrees.



The SM1204SPGC is designed for surface mounting with a right-angle orientation, utilizing a 1204 (3210 Metric) package. It is specified with a wavelength of 523nm and a standard configuration.

SM1204SPGC Quick Information

Product Type: LED Indication - Discrete
Canonical Name: Bivar Inc. SM1204SPGC Green LED
Subcategory: Discrete

SM1204SPGC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SM1204SPGC Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SM1204SPGC Features

  • Green color discrete LED indicator.
  • 3.3V typical forward voltage.
  • 20mA typical forward current.
  • 285mcd typical luminous intensity.
  • 1204 Surface Mount, Right Angle package.

SM1204SPGC Applications

  • Ideal for status indication.
  • Suitable for compact designs.
  • Used in electronic equipment.
  • Provides clear visual feedback.

SM1204SPGC FAQs

6 frequently asked questions generated from this part’s specifications.
What color is the Bivar Inc. SM1204SPGC LED?

The Bivar Inc. SM1204SPGC LED is green.

What is the typical forward voltage for the SM1204SPGC LED?

The typical forward voltage for the SM1204SPGC LED is 3.3V.

What is the typical forward current of the SM1204SPGC LED?

The typical forward current of the SM1204SPGC LED is 20mA.

What is the luminous intensity of the SM1204SPGC LED?

The typical luminous intensity of the SM1204SPGC LED is 285mcd.

What is the package type for the SM1204SPGC LED?

The SM1204SPGC LED is supplied in a 1204 (3210 Metric) package.

How is the SM1204SPGC LED mounted?

The SM1204SPGC LED is designed for Surface Mount, Right Angle mounting.
