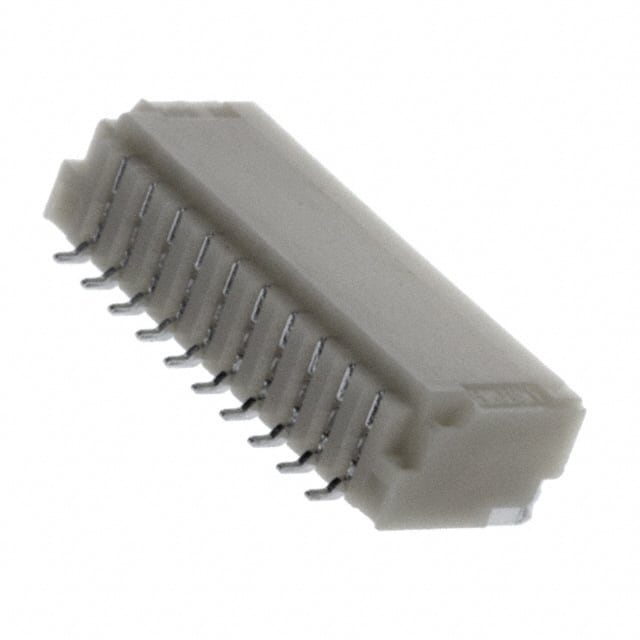

The SM10B-SRSS-TB(LF)(SN) is a 10 position, single row shrouded header from JST's SRSS series. It features a 1.00mm pitch and a surface mount, right angle mounting style, making it suitable for compact board-to-cable/wire applications. The header is fully shrouded with a 4-wall design and uses a push-pull fastening mechanism.
Electrical ratings include a current rating of 1A and a voltage rating of 50V. The operating temperature range is -25°C to 85°C. The insulation material is polyamide (nylon) with a UL94 V-0 flammability rating and natural color. Contacts are made of copper alloy with a tin finish and square contact shape.
The connector includes a solder retention feature for reliable mounting. The insulation height is 2.90mm. All 10 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.15 | $1.15 |
| 10+ | $0.97 | $0.97 |
| 25+ | $0.93 | $0.93 |
| 100+ | $0.87 | $0.87 |
| 250+ | $0.79 | $0.79 |
| 500+ | $0.71 | $0.71 |
| 1,000+ | $0.56 | $0.56 |
| 3,000+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.00mm.
It has 10 positions in a single row.
The current rating is 1A.
The voltage rating is 50V.
Surface mount, right angle.
-25°C to 85°C.
Yes, it is a shrouded - 4 wall design.
