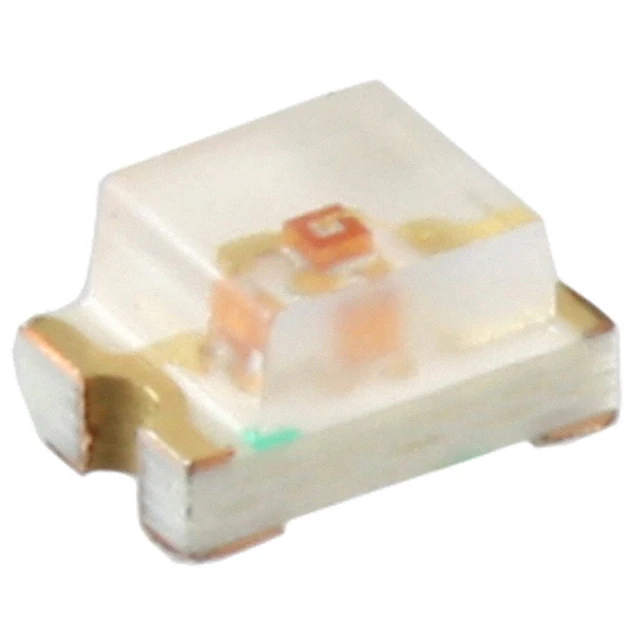

SM0805GCL The Bivar Inc. SM0805GCL is a green LED indication component. It operates at a typical forward voltage of 1.9V and has a dominant wavelength of 574nm.
Mfr Part #:

SM0805GCL

Available from 2 distributors
Mfr Name: Bivar Inc.
Bivar Inc.
The Bivar Inc. SM0805GCL is a green LED indication component. It operates at a typical forward voltage of 1.9V and has a dominant wavelength of 574nm.
✓ Total Stock: 2,650 pcs
$ Price Range: $0.06

SM0805GCL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1,325 pcs
On Request
1325 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
1,325 pcs
On Request
1325 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SM0805GCL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Forward Voltage
Height (Max)
Lens Color
Lens Size
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Supplier Device Package
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

SM0805GCL Description

Short technical summary and product information.

The Bivar Inc. SM0805GCL is a discrete LED designed for indication purposes. This component features a green light emission with a dominant wavelength of 574nm and a peak wavelength of 575nm.



Key electrical characteristics include a typical forward voltage of 1.9V at 2mA test current, and a luminous intensity rating of 3.6mcd. The viewing angle is 130 degrees.



Mechanically, the SM0805GCL is housed in an 0805 (2012 Metric) package, measuring 2.00mm in length and 1.20mm in width, with a maximum height of 0.80mm. It is designed for surface mount applications. The lens style is rectangular with a flat top, and the lens is colorless and clear.



Environmental compliance includes RoHS3 status. The component is supplied in Tape & Reel (TR) or Cut Tape (CT) packaging.

SM0805GCL Quick Information

Product Type: LED Indication - Discrete
Canonical Name: Bivar Inc. SM0805GCL Green LED Indication - Discrete
Subcategory: Discrete LED

SM0805GCL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SM0805GCL Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

SM0805GCL Features

  • Green LED for indication purposes.
  • Typical forward voltage of 1.9V.
  • Dominant wavelength at 574nm.
  • 3.6mcd luminous intensity.
  • 0805 surface mount package.

SM0805GCL Applications

  • Used in electronic indicator circuits
  • Suitable for consumer electronics
  • Ideal for industrial equipment
  • Automotive indicator applications

SM0805GCL FAQs

5 frequently asked questions generated from this part’s specifications.
What is the forward voltage of the SM0805GCL LED?

The typical forward voltage of the SM0805GCL LED is 1.9V at 2mA test current.

What is the dominant wavelength of the Bivar Inc. SM0805GCL?

The dominant wavelength of the SM0805GCL is 574nm.

What is the luminous intensity of the SM0805GCL?

The luminous intensity rating for the SM0805GCL is 3.6mcd.

What package type is the SM0805GCL LED supplied in?

The SM0805GCL LED is supplied in an 0805 (2012 Metric) package.

What is the viewing angle of the SM0805GCL?

The viewing angle of the SM0805GCL is 130 degrees.
